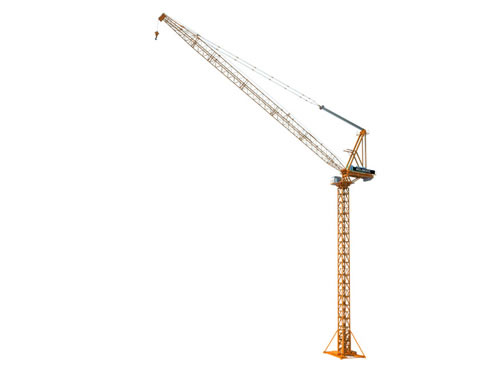

Derrick Tower Crane

Description
Also known as luffing jib tower crane consists of metal structure, operation structure and electric system. And metal structure includes tower body, swing arm and base, etc. The swing arm is mounted on the top of rotary crane. Such tower crane has large working space. Luffing jib tower crane is mainly applicable in large construction, industrial equipment installation fields which require heavy lifting weight, precise position and high safety.

Classification
Derrick tower crane can be subdivided into stationary type and walking type. Stationary luffing jib tower crane is widely used nowadays.
Stationary tower crane has three movements in three directions.
1. Lifting movement.
Hoisting mechanism is utilized to achieve under-mountain vertical movement for goods.
2. Jib Luffing Movement
Jib lubbing mechanism is adopted to make diameter-direction movement within the rotation scope of the tower crane.
3. Swing Movement
Swing mechanism and swing support are employed to carry out circling movement within arm length range.
According to whether the arm can do upward movement, derrick tower crane can be classified into swing type and non-swing pattern.

Features
1. Material
Luffing jib tower crane adopts high-tensile structural steel and tries to increase lifting weight instead of arm rest length. The best materials with high impact toughness are selected. Using high performance materials, derrick tower crane becomes thin. And this can greatly increase the radius changing speed and working efficient.
2. Scale
Derrick tower crane develops into large size. Installation of steel structure and national defense need tower crane with large-tonnage lifting weight.
3. Structure
1) Modular Design and Dismounting Design
2) Compact Design
Volume and balance arm length are reduced to the largest extent so as to decrease tail turning radius and expand its working range.
3) Simple Design
The structure is largely simplified in order to shorten and improve force transmitting line. In this way, luffing jib tower crane features more reliable structure, improved processing craft and reduced manufacturing cost.
4. Humanization Design

Bristol Compressors (Shanghai) Co., Ltd. is a specialized maker and exporter of luffing jib tower crane (derrick tower crane) in China. We provide nationwide quality assurance for ourproducts. We have six large service management areas all across China and possess 108 real stores. We will inspect the machine every three months. If we are told abnormal problems, we will provide solution within two hours or send professional staff to arrive at the scene within 0.5 to 24 hours.
