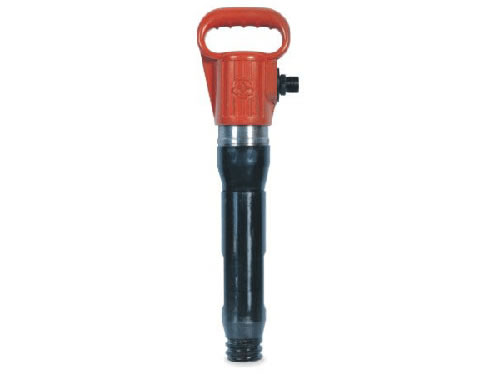

Jack Hammer

Brief Introduction
Jack hammer is composed of pneumatic structure, crashing structure and pickaxe. The crashing structure is a cylinder with thick layer, a crashing hammer inside doing reciprocating movement around the internal cylinder. The tailing part of pickaxe is inserted on the front of the cylinder, at the back of cylinder equipped with valve cabin. Hand pneumatic tools, doing piston reciprocating movement pushed by compressed air to constantly crush the hammer head. Jack hammer can be used in mining and road construction.

Technical Data

Model	Working Pressure		Air Consumption Volume		Length (mm)	N.W (kg)	G.W (kg)	Package Size (L × W × H) (mm)
	MPa	bar	m3/min	cfm
HG15	0.5	5	1.4	49	600	11	12	570 × 180 × 110

Model	Working Pressure		Air Consumption Volume		Length (mm)	N.W (kg)	G.W (kg)	Package Size (L × W × H) (mm)
	MPa	bar	m3/min	cfm
HG10	0.5	5	1.2	42	570	10	11	570 × 180 × 110

Bristol Compressors (Shanghai) Co., Ltd. is a professional maker of Jack hammers (pneumatic breakers) in China. We provide high quality pneumatic pick hammers with multi-features. We have strict quality checking system so as to guarantee the quality of our pneumatic picks. Bristol (Shanghai) Co., Ltd. never compromises to sacrifice quality to get low price. For detailed information about our Jack hammers (pneumatic breakers or pneumatic pick hammers), please visit our website and contact us directly.
