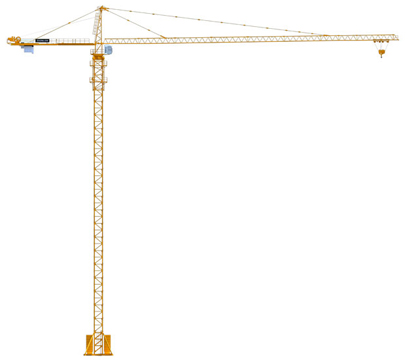

TC6013A-6 Hammer Head Tower Crane
| Rated Load Moment (kN.m) | 800 | ||||||
| Lift (m) | Multiplying Power | Independent Stationary Type | Dependent Type | ||||
| α＝2 | 46 | 220 | |||||
| α＝4 | 46 | 110 | |||||
| Working Radius (m) | Max. | 60 | |||||
| Min. | 2.5 | ||||||
| Max. Lifting Load (t) | 6 | ||||||
| Hoisting Mechanism | Multiplying Power | α＝2 | α＝4 | ||||
| Speed (m/min) | 80 | 40 | 40 | 20 | |||
| Lifting Capacity (t) | 1.5 | 3 | 3 | 6 | |||
| Power (Kw) | 24/24 | ||||||
| Hauling Mechanism | Speed (m/min) | 0-55 | |||||
| Power (Kw) | 4.0 | ||||||
| Swing Mechanism | Speed (r/min) | 0 -0.8 | |||||
| Power (Kw) | 5.5 × 2 | ||||||
