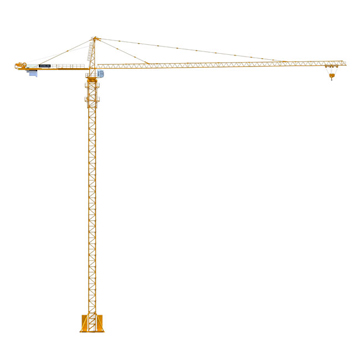

TC6016A-8F Hammer Head Tower Crane
| Rated Load Moment (kN.m) | 1250 | |||||
| Lift (m) | Multiplying Power | Independent Stationary Type | Dependent Type | |||
| α＝2 | 45 | 207 | ||||
| α＝4 | 45 | 103.5 | ||||
| Working Radius (m) | Max. | 60 | ||||
| Min. | 2.5 | |||||
| Max. Lift Load | 8 | |||||
| Hauling Mechanism | Multiplying Power | α＝2 | α＝4 | |||
| Speed (m/min) | 100 | 50 | 50 | 25 | ||
| Lifting Capacity (t) | 2 | 4 | 4 | 8 | ||
| Power (Kw) | 37 | |||||
| Hauling Mechanism | Speed (m/min | 0 to 55 | ||||
| Power (Kw) | 4.0 | |||||
| Swing Mechanism | Speed (m/min | 0 to 0.8 | ||||
