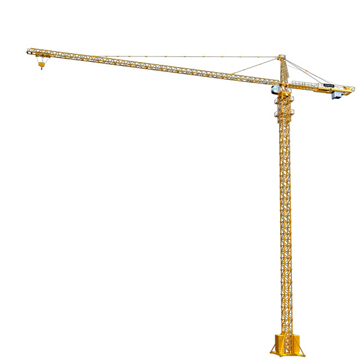

TC6517B-10 Hammer Head Tower Crane
| Rated Load Moment (kN.m) | 1600 | |||||
| Lift (m) | Multiplying Power | Independent Stationary Type | Dependent Type | |||
| α＝2 | 52 | 200 | ||||
| α＝4 | 52 | 100 | ||||
| Working Radius (m) | Max. | 65 | ||||
| Min. | 2.5 | |||||
| Max. Lift Load | 12 | |||||
| Hauling Mechanism | Multiplying Power | α＝2 | α＝4 | |||
| Speed (m/min) | 100 | 50 | 50 | 25 | ||
| Lifting Capacity (t) | 2.5 | 5 | 5 | 10 | ||
| Power (Kw) | 55\55 | |||||
| Hauling Mechanism | Speed (m/min | 0 to 55 | ||||
| Power (Kw) | 5.5 | |||||
| Swing Mechanism | Speed (m/min | 0 to 0.7 | ||||
| Power (Kw) | 5.5 × 2 | |||||
