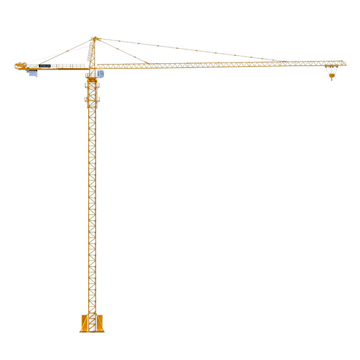

TC7035B-16 Hammer Head Tower Crane
| Rated Load Moment (kN.m) | 3150 | |||||
| Lift (m) | Multiplying Power | Independent Stationary Type | Dependent Type | |||
| α＝2 | 61.5 | 241.5 | ||||
| α＝4 | 61.5 | 120.5 | ||||
| Working Radius (m) | Max. | 70 | ||||
| Min. | 3.5 | |||||
| Max. Lift Load | 16 | |||||
| Hauling Mechanism | Multiplying Power | α＝2 | α＝4 | |||
| Speed (m/min) | 75 | 37.5 | 37.5 | 18.75 | ||
| Lifting Capacity (t) | 4 | 8 | 8 | 16 | ||
| Power (Kw) | 60 | |||||
| Hauling Mechanism | Speed (m/min) | 0 to 100 | ||||
| Power (Kw) | 11 | |||||
| Swing Mechanism | Speed (m/min | 0 to 0.6 | ||||
| Power (Kw) | 7.5 × 2 | |||||
