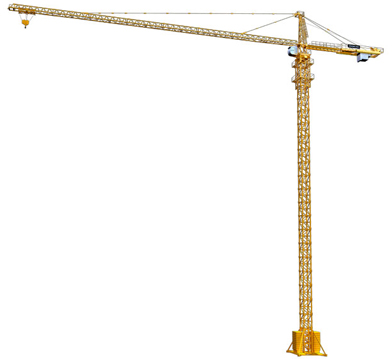

TCT5010-4 Hammer Head Tower Crane

Rated Load Moment (kN.m)		630
Lift (m)		Multiplying Power		Independent Stationary Type			Dependent Type
		α＝2		29.3			135.7
		α＝4		29.3			67.85
Working Radius (m)		Max.			50
		Min.			2.5
Max. Lifting Load (t)		4
Hoisting Mechanism	Multiplying Power	α＝2			α＝4
	Speed (m/min)	65	32.5	9.7	32.5	16.25		4.85
	Lifting Capacity (t)	1	2	2	2	4		4
	Power (Kw)	15/15/4
Hauling Mechanism		Speed (m/min)			40/20
		Power (Kw)			2.4/1.5
Swing Mechanism		Speed (r/min)			0 -0.6
		Power (Kw)			3.7
