Pir-Am612

Digital Smart Pyroelectric Detector AM612

AM612 is a newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution,with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions which can include ambient light level and sensitivity adjustments.

Features and Benefits

Digital signal processing（DSP）
Power adjustable, save more energy
Two-way differential high impedance sensor input
Built-in filter, screen the interference by other frequency
Excellent power supply rejection, Insensitive to RF interference
Schmidt REL output
Low voltage, low power consumption, instantaneous settling after power up

Applications

Toys
Digital photo frame
TV, Refrigerator, Air-conditioner
USB Alarms
PIR motion detection
Intruder detection
Occupancy detection
Motion sensor lights
Computer monitor
Security system
Automatic control
Corridor
Stairs Lights etc.

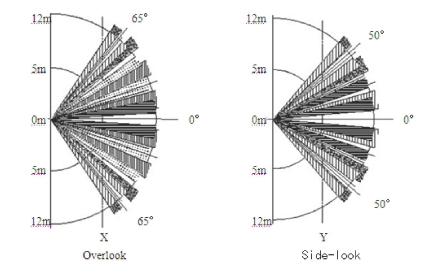

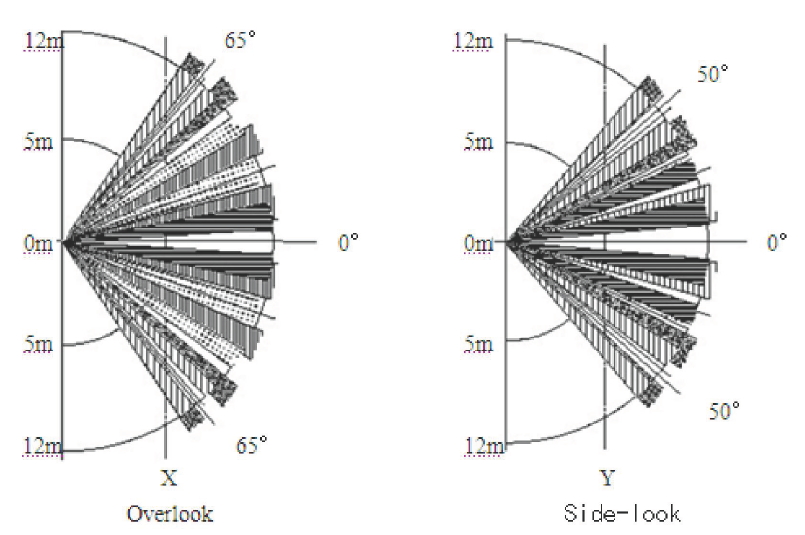

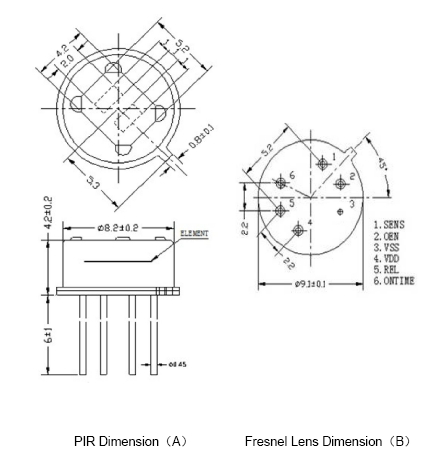

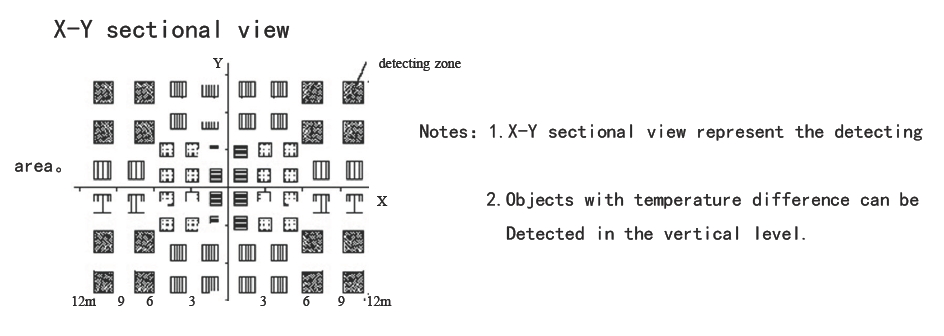

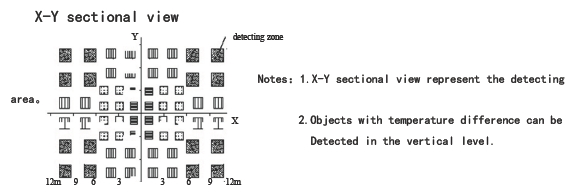

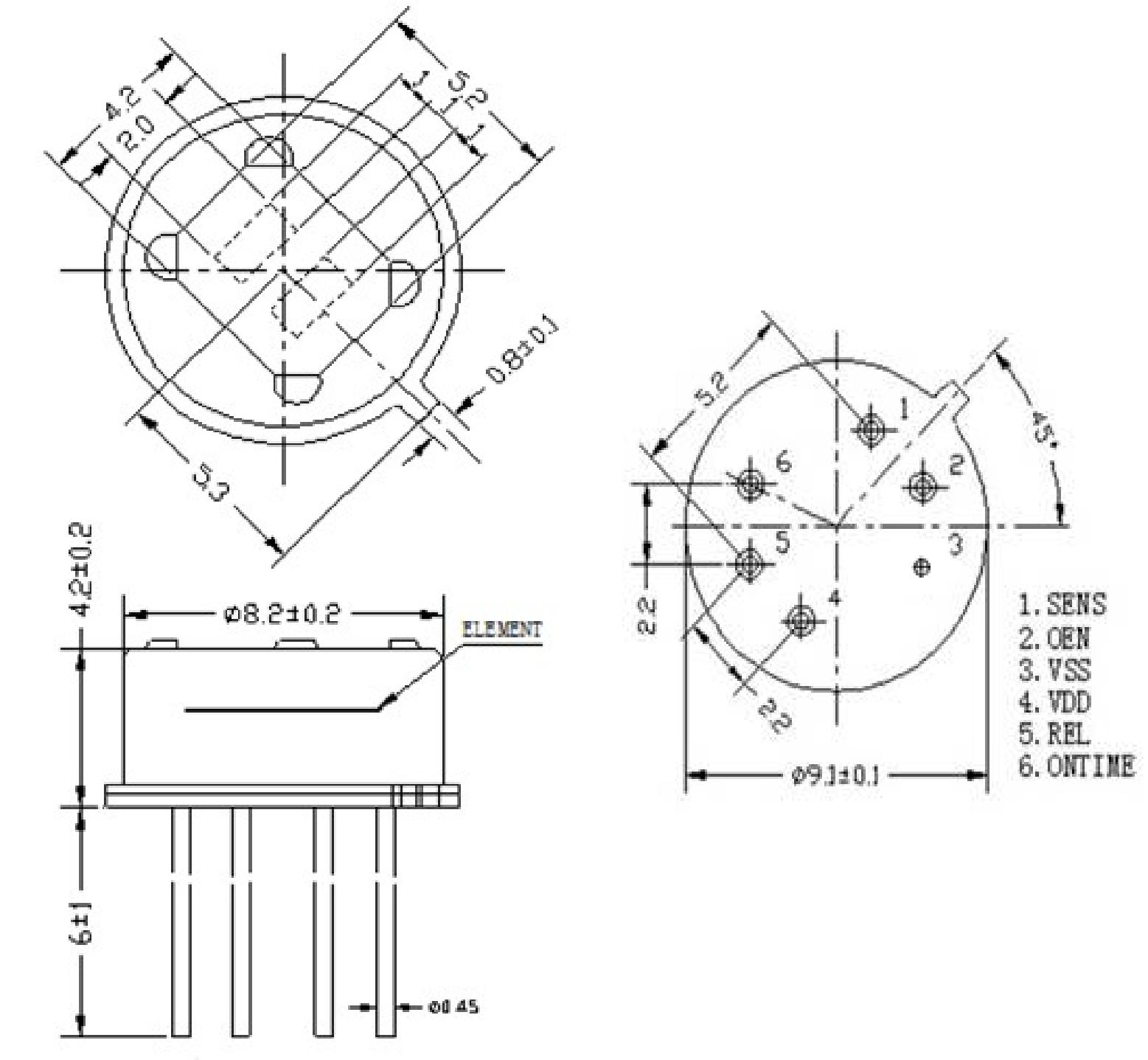

Dimension

Notes：Dimension A can be used with Dimension B.

Technical Data

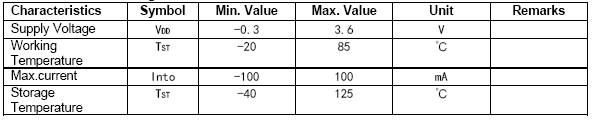

1.Maximum Ratings

2.Working Conditions (T=25°C, Vdd=3V，Except other requirements)

Characteristics	Symbol	Min.	Type	Max.	Unit	Remarks
Supply Voltage	VDD	2.7	3	3.3	V	IR=0.5mA
Working Current	IDD	12	15	20	μA

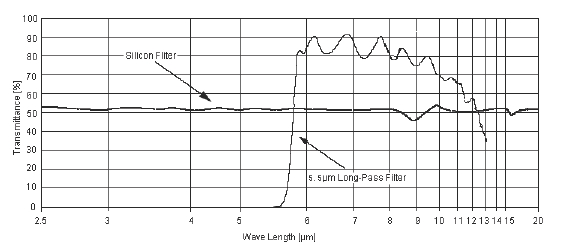

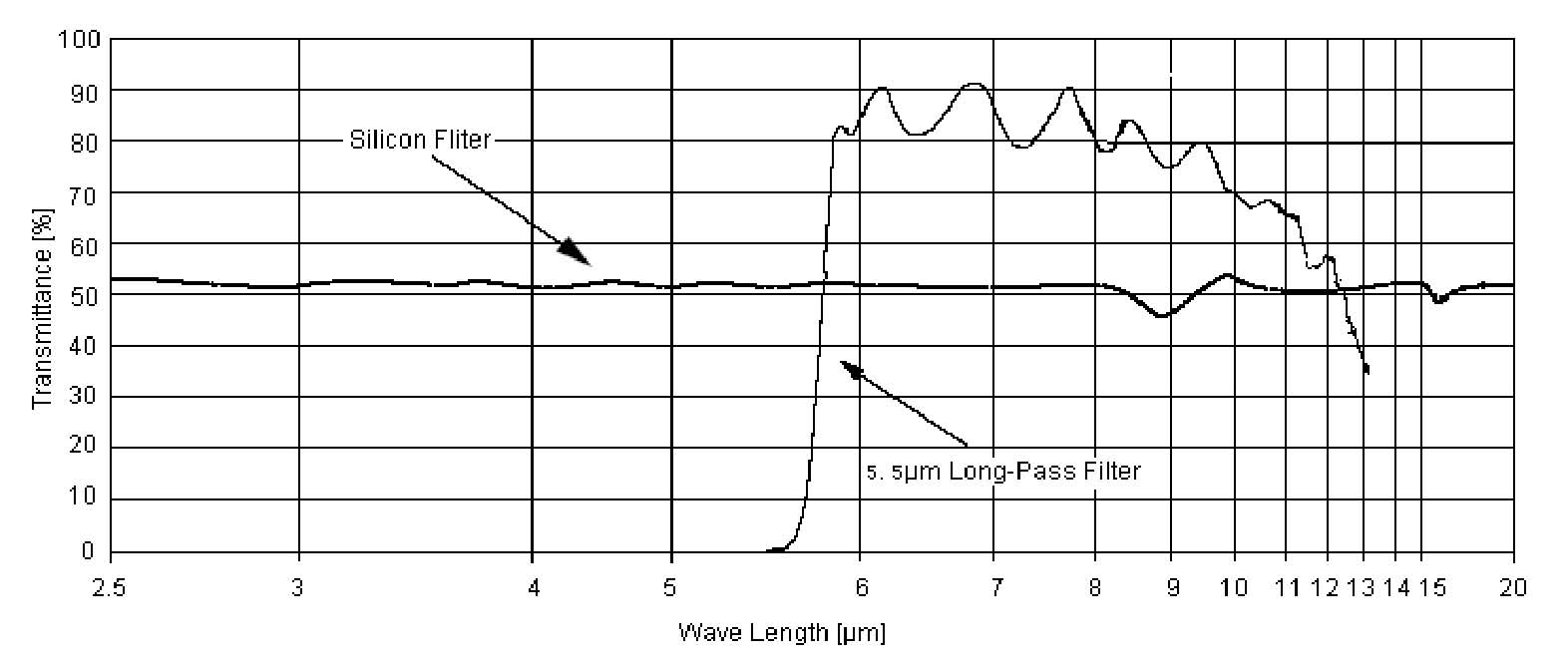

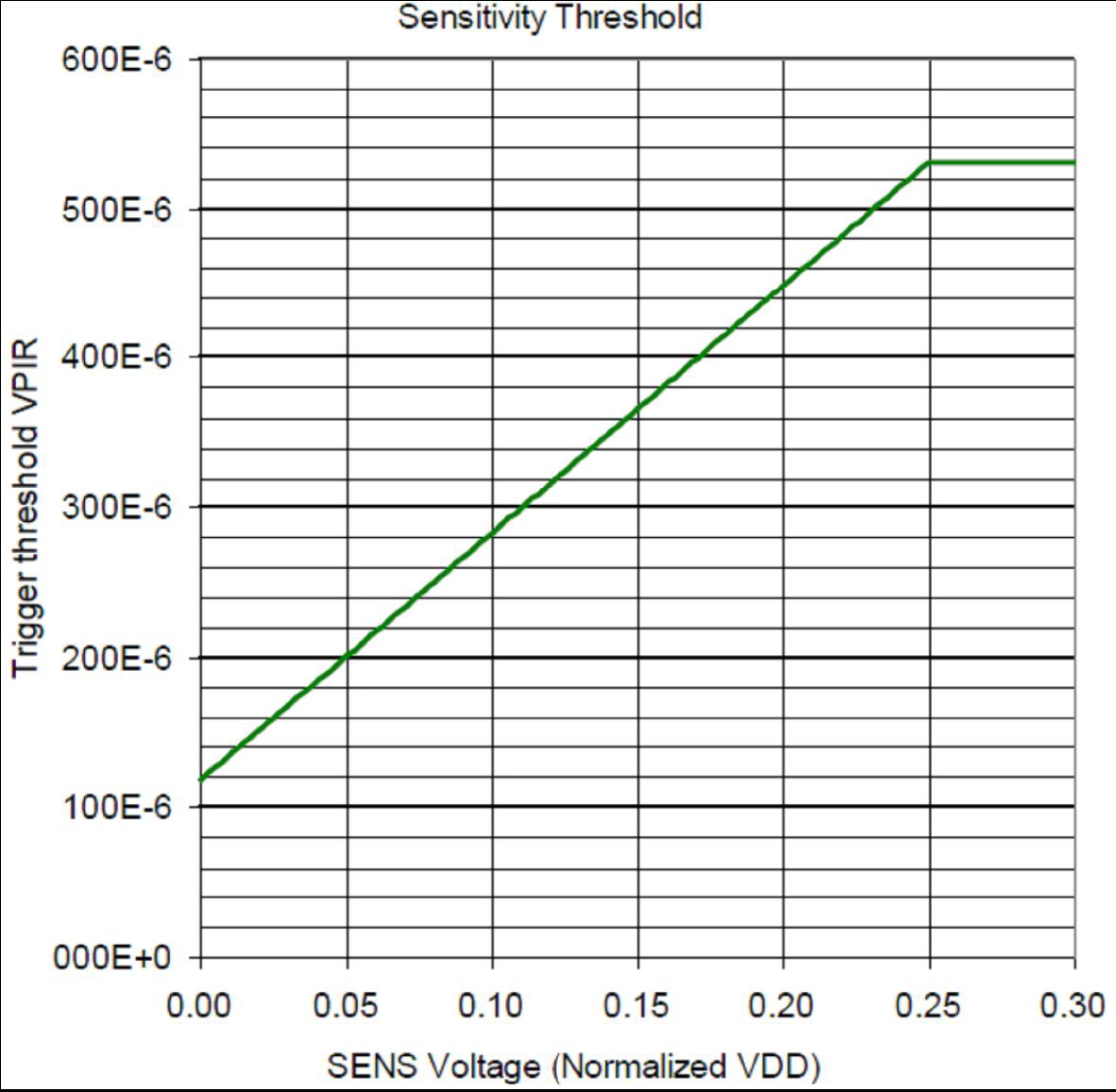

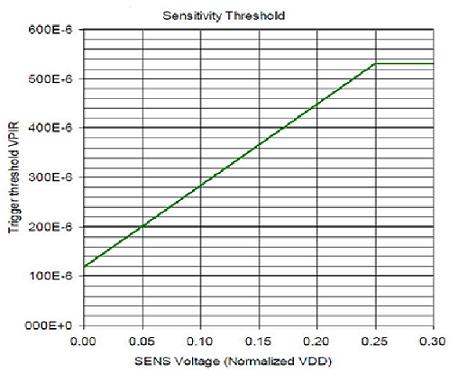

Sensitivity threshold value	VSENS	120		530	μV
Output REL
Output Low Current	IOL	10			mA	VOL<1V
Output High Current	IOH			-10	mA	VOL>(VDD-1V)
Output Low current Locktime	TOL		2.3		s	Non-adjustable
Output High current Locktime	TOH	2.3		4793	s
Input SENS/ONTIME
Voltage Input Range		0		VDD	V	0Vto¼VDD
Input Bias Current		-1		1	μA

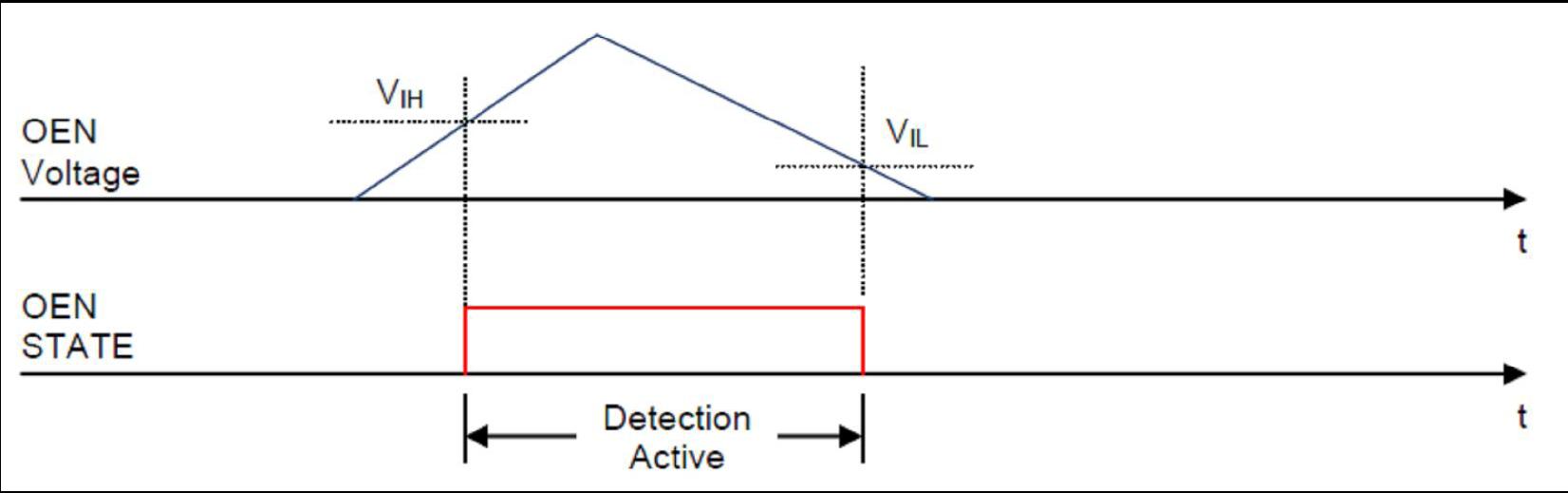

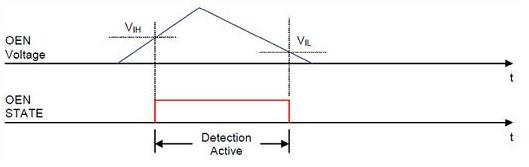

OEN
Input Low Voltage	VIL			0.2V dd	V	OEN Threshold Value From High Voltage to Low Voltage
Input High Voltage	VIH	0.4V dd			V	OEN Threshold Value From High Voltage to Low Voltage
Input Current	II	-1		1	μA	VSS<VIN<VDD
Oscillator&Filter
Low pass filter cut-off frequency				7	Hz
High pass filter cut-off frequency				0.44	Hz
Oscillator frequency on Chip	FCLK			64	kHz

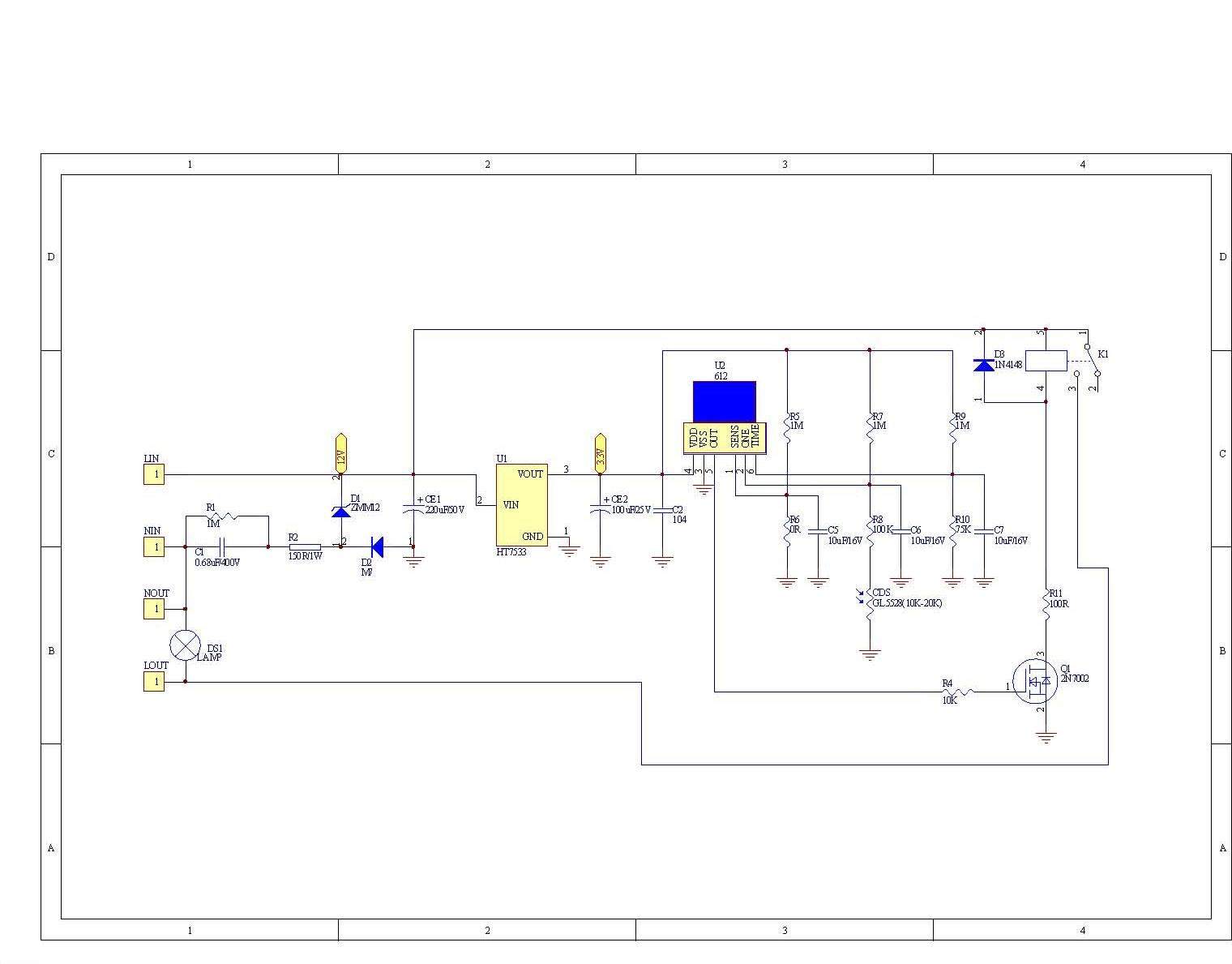

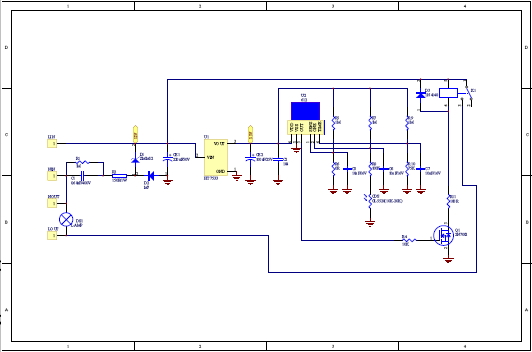

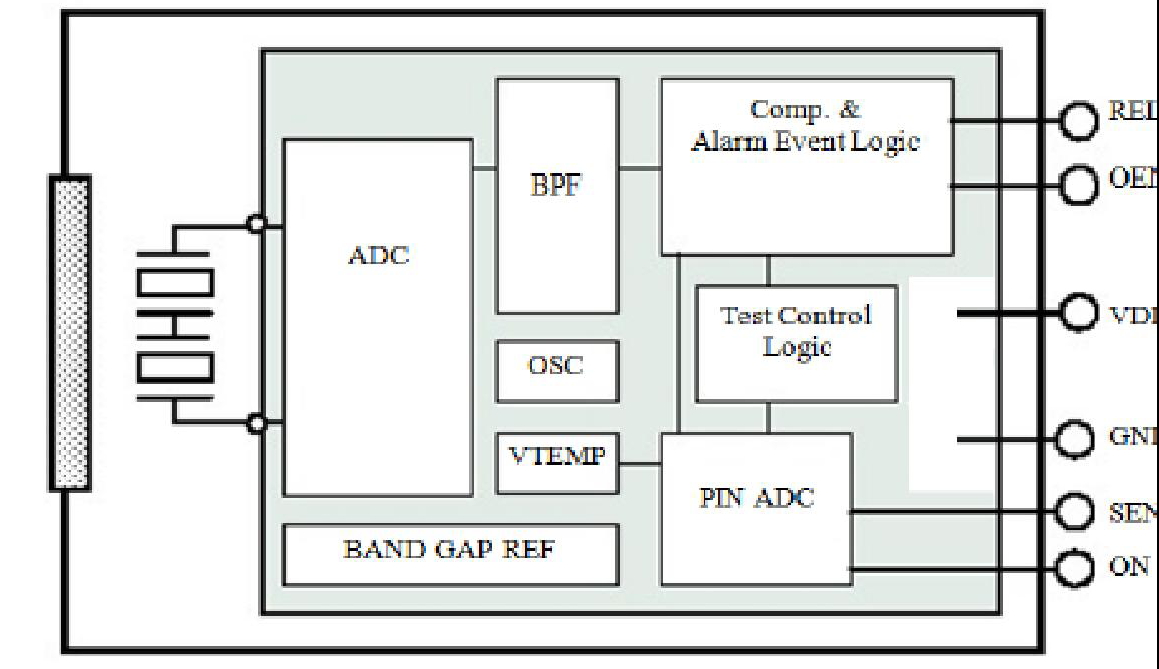

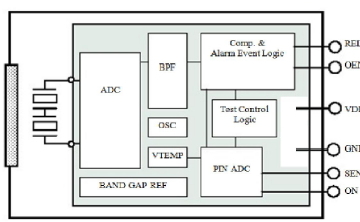

Interior Block Diagram

Adjustable Relay Time

Step	ONTIME Central Voltage (V)	ONTIME(s)	Voltage(V)	Resistor Value for ONTIMEPIN(±1%)
	(VDD(Step2)+3)/128	Typical	(VDD=3V)	Pull-Up Resistor	Pull-Down Resistor
0	3/128 or Lower	2.3	0	Non	0R
1	(VDD*2+3)/128	4.7	0.07	1M	24K
2	(VDD*4+3)/128	7	0.117	1M	39K
3	(VDD*6+3)/128	9.4	0.164	1M	56K
4	(VDD*8+3)/128	18.7	0.21	1M	75K
5	(VDD*10+3)/128	37	0.257	1M	91K
6	(VDD*12+3)/128	56	0.304	1M	110K
7	(VDD*14+3)/128	1min 15 sec	0.351	1M	130K
8	(VDD*16+3)/128	2min 30 sec	0.398	1M	150K
9	(VDD*18+3)/128	5min	0.445	1M	174K
10	(VDD*20+3)/128	7min 29 sec	0.492	1M	200K
11	(VDD*22+3)/128	9min59 sec	0.539	1M	220K
12	(VDD*24+3)/128	19min 58 sec	0.585	1M	240K
13	(VDD*26+3)/128	39min 56sec	0.632	1M	270K
14	(VDD*28+3)/128	59min25 sec	0.679	1M	294K
15	(VDD*30+3)/128orHigher	1hour20min	3	0R	Non
