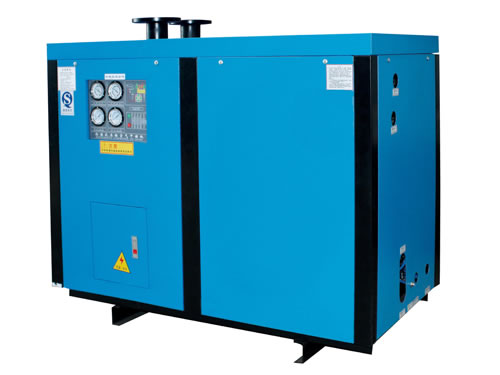

High Temperature Refrigerated Air Dryer

Description
High temperature refrigerated air dryer (kind of water cooled air dryer) takes zinc plated copper pipe for its pipe system. And the working pressure is acceptable from 0.3 MPa to 4.5 MPa. The air heat exchanger employs stainless steel pipe, applicable for medicine and food industries. With good boiler blow down system, large volume of condensate water and oil grease are let out effectively, which makes the air clean and dry and meanwhile lowers the load of the system.

Advantages
1. This high temperature refrigerated air dryer is installed with good quality cooling system. The key parts of the machine are from imported famous brand, which guarantees good treatment effect and keeps the system working stably.
2. This high temperature refrigerated air dryer features complete air–liquid separation. This water cooled air dryer utilizes filter type air-liquid separator inbuilt with American HANKISON filter element in order to guarantee the drying effect.
3. Its evaporator adopts turbulence structure that features high heat exchange efficiency.
4. This high temperature refrigerated air dryer is equipped with various control circuit (single, collective, joint control, PC plate and frequency, etc.) in or to satisfy different demands of clients.
5. This water cooled air dryer makes use of outer rotor cooling fan that is characterized by large air volume, low noise and frequent start-stop with long working life.
6. This high temperature refrigerated air dryer employs Armstrong foam flame retardant insulation material so as to reduce the loss of cooling capacity.

Technical Data

Air Inlet Temperature	≤80℃
Cooling Method	Water-Cooling
Inlet Pressure	0.4-1.0MPa
Pressure Loss	≤0.03MPa
Pressure Dew Point	2 to 10℃
Refrigerant	R22
Cooling Water Inlet Temperature	≤32℃
Cooling Water Intake Pressure	≤0.2~0.4MPa

Detailed Types of High Temperature Refrigerated Air Dryer

Model		SAD-10NW	SAD-20NW	SAD-30NW	SAD-40NW	SAD-50NW	SAD-60NW	SAD-80NW	SAD-100NW	SAD-150NW	SAD-200NW	SAD-300NW
Capacity (Nm3/min)		10.7	25	33	45	55	65	85	110	160	220	300
Power Source (V/Hz)		380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Compressure Power(HP/Kw)		3.0/2.23	5/3.8	7.5/5.7	10.5/8	12/9	15/11.3	20/15	24/18	36/27	48/36	80/60
Cooling Water Circulation Volume (Nm³/h)		2.0	7.2	11.0	14.0	18.0	22.0	29.0	36.0	54.0	74.0	112.5
Air Joint Pipe Caliber		DN65	DN80	DN100	DN125	DN125	DN125	DN150	DN150	DN200	DN200	DN250
Condenser Water Pipe Diameter		ZG1	ZG1	ZG1.5	ZG1.5	ZG1.5	ZG1.5	ZG2	ZG2	DN100	DN100	DN100
Weight (kg)		260	470	860	980	1150	1250	1600	2200	3000	3200	4100
Overall Dimension	L (mm)	690	1400	1650	1850	2000	2280	2850	3200	3200	3200	4100
	W ( mm)	1140	750	950	950	1600	1600	2000	2000	3000	4000	4000
	H (mm)	1065	1130	1380	1385	1385	1950	2205	2205	2205	2205	2580

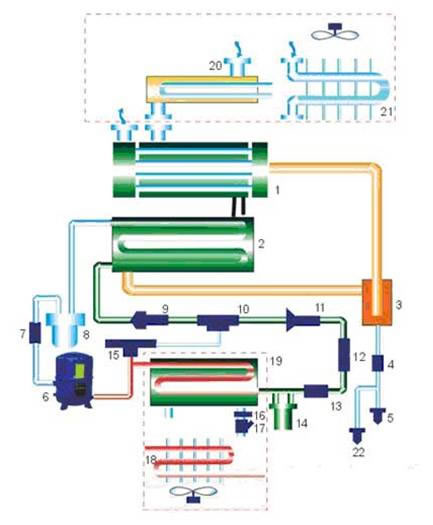

1. Air Heat Exchanger
2. Evaporimeter
3. Gas-Liquid Separator
4. Drainage Anti-Blocking Filter
5. Manual Blow-Down Valve
6. Refrigeration Compressor
7. Suction Filter
8. Vaporizer
9. Liquid Separator
10. Air-Liquid Mixer
11. Thermal Expansion Valve
12. Sight Glass
13. Dry Filter
14. Reservoir
15. Hot Air Bypass Valve
16. Water Regulating Valve
17. Water Filter
18. Condenser (Air Cooling)
19. Condenser (Water Cooling)
20. Front Pre-Cooler (Water Cooling)
21. Front Pre-Cooler (Air Cooling)
22. Auto-Drainer
