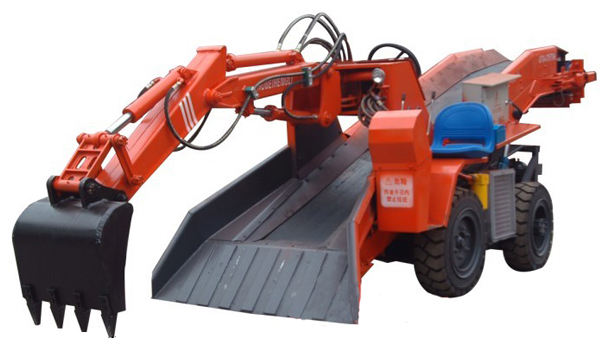

LWT-60 4Q-XX-CD Four Wheel Drive Reinforced Mucking Machine

Main Technical Parameter Standard
1 Load Capacity(m³/h) About 60
2 Vehicle Weight (kg) 3100
3 Minimum Turning Radius (m) 4.5
4 Digging (mm) 2800
5 Digging (mm) 1750
6 Digging Depth (mm) 300
7 Digging Distance (mm) 1550
8 Unloading (mm) 1700
9 Unloading Distance (mm) 1600
10 Grade Ability (°) ≦18 (Hardstand)
11 Belt Speed (m/min) 48
12 Traveling Speed (km/h) 3
13 Minimum Ground Clearance (mm) 220
14 Wheel Distance (mm) 1245
15 Wheelbase (mm) 1550
16 Rated Working Pressure (MPa) 12.5
17 Motor Power (Kw) 15
18 Max. Material Throughput Size (mm) 600 × 500 × 490
19 Adaptable Roadway Slope (°) ≦8
20 Adaptable Minimum Roadway Section (m) 2 × 2.2
21 Dimension (Length × × ) 5150 × 1500 × 1780
