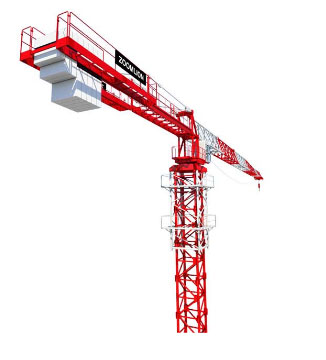

РусскийTCT5510-6 Head Tower Crane
| Rated Load Moment (kN.m) | 800 | |||||||||
| Lift Height (m) | Multiplying Power | Independent Stationary Type | Dependent Type | |||||||
| α=2 | 40.5 | 220 | ||||||||
| α=4 | 40.5 | 110 | ||||||||
| Working Radius (m) | Max. | 55 | ||||||||
| Min. | 2.5 | |||||||||
| Max. Lifting Load (t) | 6 | |||||||||
| Hoisting Mechanism | Multiplying Power | α=2 | α=4 | |||||||
| Speed (m/min) | 8.8 | 40 | 80 | 4.4 | 20 | 80 | ||||
| Lifting Capacity(t) | 3 | 3 | 1.5 | 6 | 6 | 1.5 | ||||
| Power (Kw) | 24/24/5.4 | |||||||||
| Hauling Mechanism | Speed (m/min) | 550/25 | ||||||||
| Power (Kw) | 3.3/2.2 | |||||||||
| Swing Mechanism | Speed (r/min) | 0-0.65 | ||||||||
| Power (Kw) | 5.5 | |||||||||
