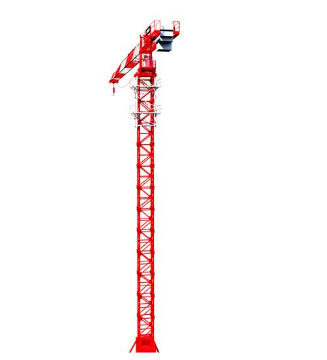

РусскийTCT5513-8 Head Tower Crane
| Rated Load Moment (kN.m) | 800 | |||||||||
| Lift Height (m) | Multiplying Power | Independent Stationary Type | Dependent Type | |||||||
| α=2 | 38 | 200 | ||||||||
| α=4 | 38 | 100 | ||||||||
| Working Radius (m) | Max. | 55 | ||||||||
| Min. | 2.5 | |||||||||
| Max. Lifting Load (t) | 8 | |||||||||
| Hoisting Mechanism | Multiplying Power | α=2 | α=4 | |||||||
| Speed (m/min) | 40 | 80 | 20 | 40 | ||||||
| Lifting Capacity(t) | 4 | 2 | 8 | 4 | ||||||
| Power (Kw) | 30/30 | |||||||||
| Hauling Mechanism | Speed (m/min) | 50/55 | ||||||||
| Power (Kw) | 4 | |||||||||
| Swing Mechanism | Speed (r/min) | 0-0.6 | ||||||||
| Power (Kw) | 5.5 | |||||||||
