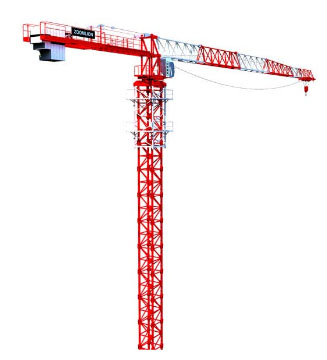

РусскийTCT7527-20 Head Tower Crane
| Rated Load Moment (kN.m) | 2500 | |||||||||
| Lift Height (m) | Multiplying Power | Independent Stationary Type | Dependent Type | |||||||
| α=2 | 54 | 196.5 | ||||||||
| α=4 | 54 | 98.25 | ||||||||
| Working Radius (m) | Max. | 75 | ||||||||
| Min. | 3.5 | |||||||||
| Max. Lifting Load (t) | 20 | |||||||||
| Hoisting Mechanism | Multiplying Power | α=2 | α=4 | |||||||
| Speed (m/min) | 40 | 80 | 100 | 20 | 40 | 50 | ||||
| Lifting Capacity(t) | 10 | 5 | 3 | 20 | 10 | 6 | ||||
| Power (Kw) | 75 | |||||||||
| Hauling Mechanism | Speed (m/min) | 50/100 | ||||||||
| Power (Kw) | 11 | |||||||||
| Swing Mechanism | Speed (r/min) | 0-0.6 | ||||||||
| Power (Kw) | 7.5 x 3 | |||||||||
