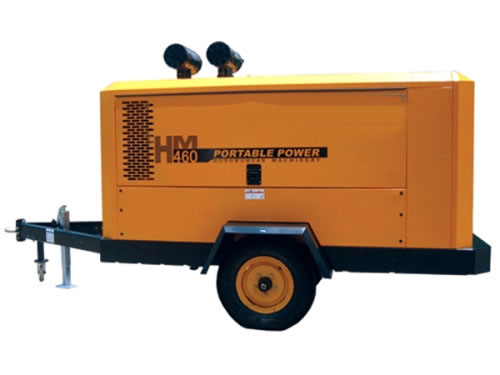

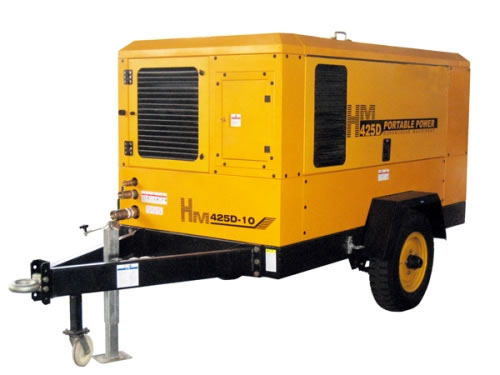

HM Series Electric Portable Screw Air Compressor

Main Features
1. HM series portable screw air compressor adopts no limit intake control to help energy saving of the machine.
2. Such portable electric air compressor employs four phase motor with high efficiency, long lifetime and better reliability.
3. HM series portable screw air compressor makes use of scientific sound absorption and vibration reduction technology to ensure machine operation with low noise.
4. HM series electric portable screw air compressor utilizes reasonable design of fan and cooler, effectively ensuring low and high temperature of the machine.
5. HM series portable screw air compressor is installed with temperature control valve of famous international brand with better accuracy and reliability.
6. Such portable electric air compressor features easy operation.
7. HM series portable screw air compressor possesses human friendly automatic alarm and shutdown protection function.
8. Such screw air compressor introduces electric control elements of SIEMENS, which makes the machine more reliable and safer.
9. HM series portable screw air compressor makes use of simple design concept, making it easy to repair and maintain.

Technical Data

Model		HM365D-8	HM365D-11	HM375D-8	HM375D-10	HM425D-8	HM425D-10	HM460D-4	HM530D-8
Compressor	Air Discharge Volume (m3/min)	10.2	10.2	10.6	10.6	12	12	13	15
	Working Pressure bar)	8	11	8.6	10	8	10	14	8
	Lubricating Oil Capacity (L)	40	40	40	40	40	40	40	40
	Joint Size	G1,G1 1/2,G2	G1,G1 1/2,G2	G1,G1 1/2,G2	G1,G1 1/2,G2	G1,G1 1/2,G2	G1,G1 1/2,G2	G1,G1 1/2,G2	G1,G1 1/2,G2
	Noise	76	76	76	76	76	76	76	76
Generator	Model	Y2 280S-4	Y2 280S-4	Y2 280S-4	Y2 280S-4	Y2 280M-4	Y2 280M-4	Y2 315S-4	Y2 315S-4
	Rated Power (kW/HP)	75/100	75/100	75/100	75/100	90/125	90/125	110/150	110/150
	Rated Rotating Speed  (rpm)	1485	1485	1485	1485	1485	1485	1485	1485
	Power Supply (V/Hz/Ph)	380/50/3	380/50/3	380/50/3	380/50/3	380/50/3	380/50/3	380/50/3	380/50/3
	Insulation Stage	F	F	F	F	F	F	F	F
	Protection Stage	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
	Start Mode	Y-△	Y-△	Y-△	Y-△	Y-△	Y-△	Y-△	Y-△
Frame	L (mm)	4170	4170	4170	4170	4170	4170	4170	4170
	W (mm)	1850	1850	1850	1850	1850	1850	1850	1850
	H (mm)	1900	1900	1900	1900	1900	1900	1900	1900
	Weight of Machine (kg)	2000	2000	2000	2000	2000	2000	2000	2000

Bristol Compressors (Shanghai) Co., Ltd. is a professional supplier of portable screw air compressors in China. We provide high quality portable electric air compressor with multi-features. We have strict quality checking system so as to guarantee the quality of our products. Bristol (Shanghai) Co., Ltd. never compromises to sacrifice quality to get low price. For detailed information about portable screw air compressors, please visit our website and contact us directly.
