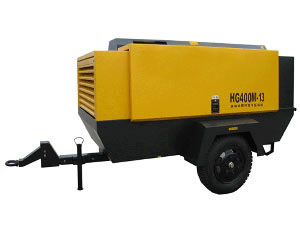

XHG Series Diesel Portable Screw Air Compressor

Advantages
1. XHG series diesel portable air compressor adopts renovate engineering design and perfect manufacturing technique.
2. Such series screw air compressor employs human-friendly design, enhancing working performance and value with characteristics of high efficiency, energy saving, high reliability and easy to operate.
3. A variety of models are available, such as HG550M-13, HG800M-14, HG900-20, XHG460M-13, XHG800M-14 and XHG900-20 diesel portable air compressor.

Main Features
1. High Reliability, Strong Adaptation
(1) XHG series diesel portable air compressor is equipped with latest Dongfeng Cummins diesel engine with reasonable adjustment of air discharge volume and power and can work under cruel environment and heavy loaded.
(2) Such series screw air compressor makes use of original imported German screw main unit and the latest generation of asymmetric gear design, which features big rotor, low speed operation, high compressing efficiency, low energy consumption and excellent working performance.
(3) Highly flexible flange coupling guarantees reliable stability of the machine.
(4)German MANN empty filter, oil filter and oil separation ensures oil quality.
(5) XHG series diesel portable air compressor is allocated with Austria HOERBIGER control valve with reliable and stable system with constant adjustment of air discharge volume from 0 to 100% so as to save energy.
(6) XHG series diesel portable air compressor is equipped with parallel design of aluminum plate wing cooler, which lifts temperature and increases exchange area of air to ensure optimal cooling effect.
(7) The frame is equipped with temperature controller, safety valve, empty filter congestion alarm and other safety protection device to ensure safe and stable operation.
(8) XHG series diesel portable air compressor is equipped with first and second phase fuel oil filter to ensure clean oil supply for the reliable operation of the generator.
(9) Heat insulation cover is put on the discharge pipe to protect the pipe and avoid scalding.
(10) XHG series diesel portable air compressor is equipped with intake pre-heater, oil heater and coolant heater to solve the start problem of the compressor under low temperature and high altitude.
2. Low Operation Cost
This series screw air compressor has realized to be light and small in design to the greatest extent, reducing actual occupying area and easy to transport, reducing operation cost effectively.
3. Easy to Operate and Maintain
(1) All the meters and operation plate of the safety system, supply air valve are designed on the same side of the machine, making it easy to operate. All the safety lights make operation status easy to see and it is equipped with automatic and alarm light setting.
(2) Broad side door and front backward door makes easy maintenance of air filter, oil filter and all controlling system.
(3) Inspected parts have to be within reach range, which makes it easy to operate and reduces shutdown time and maintenance fee.
4. Human Friendly Design
(1) Pull tab is suitable for different tow device.
(2) Lifter reduces working strength dramatically.
(3) Easy to repair pedal frame and handle.
5. Beautiful Outlook and Corrosion Resistant
(1) Wind blinds on the cover help better ventilation cooling and beauty.
(2) XHG series diesel portable air compressor adopts high cooling rolled steel plate and high temperature roasted paint to ensure durability and corrosion resistance of the products.

Technical Data

Name			HG550M-13	HG800M-14	HG900-20	XHG460M-13	XHG800M-14	XHG900-20
Air Compressor	Form		First-Phase Screw Compressed Oil Cooling	First-Phase Screw Compressed Oil Cooling	Two-Phase Screw Compressed Oil Cooling	First-Phase Screw Compressed Oil Cooling	First-Phase Screw Compressed Oil Cooling	Two-Phase Screw Compressed Oil Cooling
	Air Discharge Volume	m3/min	15	22.5	25.5	12	22.5	25.5
	Air Discharge Pressure	bar	13	14	20	13	14	20
	Drive Mode		Coupling DC, Diesel Engine Drive	Coupling DC, Diesel Engine Drive	Coupling DC, Diesel Engine Drive	Coupling DC, Diesel Engine Drive	Coupling DC, Diesel Engine Drive	Coupling DC, Diesel Engine Drive
	Air Tank Capacity	L	189	196	173	127	189	173
	Lubricating Oil Capacity	L	80	137	137	65	105	137
Generator	Manufacturer		Cummins	Cummins	Cummins	Cummins	Cummins	Cummins
	Model		6BTA5.9	6LTAA8.9	6LTAA8.9	EQ6BT5.9	6CTA8.3	6LTAA8.9
	Form		Water Cooling 4 Stroke Direct Injection	Water Cooling 4 Stroke Direct Injection	Water Cooling 4 Stroke Direct Injection	Water Cooling 4 Stroke Direct Injection	Water Cooling 4 Stroke Direct Injection	Water Cooling 4 Stroke Direct Injection
	Cylinder No.		6	6	6	6	6	6
	Cylinder Diameter	mm	102	114	114	102	114	114
	Stroke	mm	120	145	145	120	135	145
	Rated Power	kW	132	239	239	118	194	264
	Rated Rotating Speed	rpm	2500	2200	2200	2600	2200	2200
	Empty Load Rotating Speed	rpm	1400	1400	1400	1400	1400	1400
	Lubricating Oil Volume	L	24	24	24	18	24	24
	Cooling Water Volume	L	55	55	55	50	55	55
	Storage Battery		6-QW-150 Ah × 2	6-QW-200 Ah × 2	6-QW-200 Ah × 2	6-QW-150 Ah × 2	6-QW-200 Ah × 2	6-QW-200 Ah × 2
	Fuel Tank Volume	L	380	380	380	210	380	380
Frame	L	mm	3460	4300	4300	2900/3940	3980	4300
	W	mm	1700	2100	2100	1970	1980	2100
	H	mm	2240	2700	2700	2020	2320	2700
	N.Q	Kg	3600	5000	5500	2650	4550	5500
	Exhaust Valve		1-G2”,  1-G1”	1-G2”, 1-G1”	1-G2”,  1-G1”	1-G2”,  1-G1”	1-G2”, 1-G1”	1-G2”,  1-G1”
