Oil less Screw Air Compressor (11kW-355kW)

Introduction
National production inspection standard of compressor products:
Oil content in the oil free compressor: 0ppm;
Oil content in the oil less screw air compressor: ≤2 ppm;
Oil content in the oil injected compressor: ≥3 ppm

Main features
1. Oil less screw air compressor is electrically integrated, complete close-circuit, low noise, small vibration, no need for installation base.
2. Air volume adjusting method: automatic close inlet + automatic on & off.
3. Display Function
It can display changing time of oil-air separator, oil filter, air cleaner and lubricating oil. Besides, the oil less screw air compressor has the function of demonstrating present pressure, temperature, working hours, full load running hours, loading and unloading conditions and shows the motor running status.
4. Protection Function: automatic alarming (high temperature alarming, accident alarming of temperature sensor, alarming upon the time to change the oil filter, air filter, gas& air separator, accident automatic shutdown (hyper-pressure shutdown, hyper-temperature shutdown, accident shutdown of motor and processing equipment), transmitting signals so as to determine the reason for accident.
5. Controlling Function: automatically starting function upon power disconnection, remote control, multi-machine joint control function, communications function, fan shutdown function.

Application Area
Oil less screw air compressor is widely applied in textile, painting, medical care, chemical engineering, building materials, food processing, electronics and light industry, etc.

Function
1. High Performance Configuration
The same high quality products as those from European market are used in the core main unit, driving system, oil & gas control cooling system and electric control system. Advanced technology will bring you more benefit. The use of world top class BEST oil less screw air compressor main unit and high-accurate parts, combined with the company’s exquisite technology, strict craftwork, ISO quality guarantee system can make sure the machine can be used throughout the year whether under high temperature, high damp environment or started in low pressure.
2. Highly Intelligent, Friendly Man-Machine Interface
Manual operation model, intelligent accident diagnose and protection system makes robot unattended real, adapting advanced communication interface and managing many machines by internet.

Advantage
Two years guarantee for the main unit, one year guarantee for the whole unit. Oil content in the compressed air is <2ppm.

Service
1. Pre-sales: we will present the installation diagram of oil less screw air compressor, inspect onsite air, provide material list, and prepare the best competitive quotation.
2. Sale: We will send professional after-sales staff to instruct installation and train the local staff, inspecting quality of the compressed air and pipeline installation.
3. After-sales: We are committed to make the service promise of providing two-year guarantee for the main unit of oil less screw air compressor and one-year guarantee for the whole unit.

Maintenance and Repair
The normal spare parts for maintenance of compressor are provided by famous manufacturer, with the lifetime of over 3000 hours.

Mode of Transportation and Payment
By sea; T/T, only ship the goods upon receiving the total payment

Main Model For You To Choose
BEST-11F(A), BEST-15F(A), BEST-18.5F(A), BEST-22F(A), BEST-30F(A), BEST-37F(A), BEST-45F(A), BEST-55F(A), BEST-65F(A), BEST-75F(A), BEST-90F(A), BEST-110F(A), BEST-132F(A), BEST-160F(A), BEST-185F(A), BEST-200F(A), BEST-220F(A), BEST-250F(A), BEST-315F(A), BEST-355F(A)
For more detailed information about such screw compressor, please refer to the related pages as you like.

Specification
Given the various types of oil less screw air compressor, here is the form of different models of parameters.

Model Cooling Method Air Displacement (m3/min) Working Pressure (MPa) Motor Power (Kw)  Joint Pipe Bore Power Source (V/ph/Hz) Starting Method Noise [dB(A)] Venting Oil Content (ppm) Dimension (L)×(W)×(H) (mm)   Machine Set (kg)
BEST-11F(A) Air Cooling 2.0, 1.9, 1.6, 1.3 0.7, 0.8, 1.0, 1.25 11/15 G1’’ 380/3/50 Y-△ 63 2 1300× 920× 1750
 BEST-15F(A) Air Cooling 2.8, 2.6, 2.3,1.8 0.7, 0.8, 1.0, 1.25 15/20 G1” 380/3/50 Y-△ Start 64 2 1300×920  × 1750 (H)  460

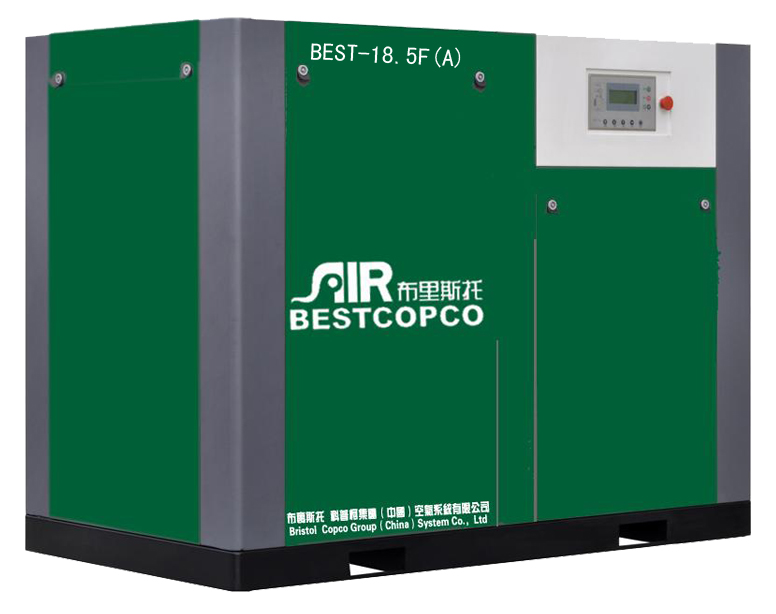

BEST-18.5F(A)   Air Cooling 3.2, 3.0, 2.7, 2.3 0.7, 0.8, 1.0,1.25 18.5/25 G1’’ 380/3/50 Y-△ Start 66 2 1300 × 920 × 1750 655
BEST-22F(A)   Air Cooling 3.8, 3.4, 3.1, 2.8 0.7, 0.8, 1.0, 1.25 22/30 G1’’ 380/3/50 Y-△ Start 67 2 1300 × 920 × 1750 670
BEST-30F(A)   Air Cooling or Water Cooling 5.3, 5.0, 4.2, 3.9 0.7, 0.8, 1.0, 1.25 30/40 G1 1/2 380/3/50 Y-△ Start 68 2 1790 × 1020 × 1400 1015
BEST-37F(A)   Air Cooling Or Water Cooling 6.4, 6.1, 5.3, 4.7 0.7, 0.8, 1.0, 1.25 37/50 G1 1/2 380/3/50 Y-△ Start 69 2 1790 × 1020 × 1400 1030
BEST-45F(A)   Air Cooling Or Water Cooling 8.0, 7.2, 6.3, 6.0 0.7, 0.8, 1.0, 1.25 45/60 G1 1/2 380/3/50 Y-△ Start 72 2 1790 × 1020 × 1400 1093
BEST-55F(A) Air Cooling or Water Cooling 11.5, 11.0, 10.0, 8.3 0.7, 0.8, 1.0, 1.25 65/90 G2’’/DN50 380/3/50 Y-△ Start 73 2 2000 (L) × 1155 (W) × 1560 (H) 1630
BEST-65F(A)   Air Cooling or Water Cooling 11.5, 11.0, 10.0, 8.3 0.7, 0.8, 1.0, 1.25 65/90 G2’’/DN50 380/3/50 Y-△ Start 73 2 2000 (L) × 1155 (W) × 1560 (H) 1630
BEST-75F(A)   Air Cooling or Water Cooling 13.6, 12.6, 11.5 0.7, 0.8, 1.0 75/100 G2’’/DN50 380/3/50 Y-△ Start 74 2 2000 (L) × 1155 (W) × 1560 (H) 1700
BEST-90F(A)   Air Cooling or Water Cooling   16.8, 16.0, 14.3, 12.3 0.7, 0.8, 1.0, 1.25 90/125 DN65/DN80 380/3/50 Y-△ Start 75 2 Air Cooling: 2300 (L) × 1600 (W) × 2000 (H) Water Cooling: 2250 (L) × 1800 (W) × 1920 (H) Air Cooling: 2800 Water Cooling: 2695
BEST-110F(A)   Air Cooling  Water Cooling   20.1, 19.8, 17.1, 14.8 0.7, 0.8, 1.0, 1.25 110/150 DN65/DN80 380/3/50 Y-△ Start 75 2 Air Cooling: 2300 (L) × 1600 (W) × 2000 (H) Water Cooling: 2250 (L) × 1800 (W) ×1920 (H) Air Cooling: 3255 Water Cooling: 3090
BEST-132F(A)   Air Cooling  Water Cooling   23.8, 22.2, 20.2, 19.0 0.7, 0.8, 1.0, 1.25 132/180   DN65/DN80 380/3/50 Y-△ Start 75 2 Air Cooling: 2300 (L) × 1600 (W) × 2000 (H) Water Cooling: 2250 (L) × 1800 (W) × 1920 (H) Air Cooling: 3375 Water Cooling: 3210
BEST-160F(A)   Air Cooling Water Cooling 29.5, 28.8, 24.5, 21 0.7, 0.8, 1.0, 1.25 160/215 DN100 380/3/50 Y-△ Start 76 2 Air Cooling: 3150 (L) × 2050 (W) × 2210 (H) Water Cooling: 2250 (L) × 1800 (W) × 1920 (H) Air Cooling: 4700 Water Cooling: 3980
BEST-185F(A)   Air Cooling Water Cooling 33.8, 32.0, 28.8, 24.5 0.7, 0.8, 1.0, 1.25 185/250 DN100 380/3/50 Y-△ Start 76 2 Air Cooling: 3150 (L) × 2050 (W) × 2210 (H) Water Cooling: 2250 (L) × 1800 (W) × 1920 (H) Air Cooling: 4650 Water Cooling: 4050
BEST-200F(A)   Air Cooling Water Cooling 36.6, 34.5, 30.8, 26 0.7, 0.8, 1.0, 1.25 200/270 DN100 380/3/50 Y-△ Start 76 2 Air Cooling: 3150 (L) × 2050 (W) × 2210 (H) Water Cooling: 2250 (L) × 1800 (W) × 1920 (H) Air Cooling: 4600 Water Cooling: 4200
BEST-220F(A)   Air Cooling Water Cooling 40.2, 37.6, 33.0, 29.5 0.7, 0.8, 1.0, 1.25 220/300 DN100 380/3/50 Y-△ Start 77 2 Air Cooling: 3150(L)×2050(W)×2210(H) Equipped with High-Voltage Motor: 3150 (L) × 2050 (W) × 2510 (H) Water Cooling: 3150 (L) × 2050 (W) × 2213 (H) Air Cooling: 5500 Water Cooling: 5590
BEST-250F(A)   Air Cooling Water Cooling 45.8, 42.8, 39.0, 33.6 0.7, 0.8, 1.0, 1.25 250/340 DN100 380/3/50 Y-△ Start 77 2 Air Cooling: 3150(L)×2050(W)×2210(H) Equipped with High-Voltage Motor: 3150 (L) × 2050 (W) × 2510 (H) Water Cooling: 3150 (L) × 2050 (W) × 2213 (H) Air Cooling: 5500 Water Cooling: 5590
BEST-315F(A)   Air Cooling Water Cooling 58.8, 54.8, 48.5, 39 0.7, 0.8, 1.0, 1.25 315/430 DN125 380/3/50 Y-△ Start 78 2 Air-Cooled Complete Machine Parts: 3300 (L) × 2000 (W) × 2315 (H) Air Cooling Machine Components: 2450 (L) × 1800 (W) × 2220 (H) Water Cooling: 3850 (L) × 2050 (W) × 2200 (H) Air Cooling: 8060 Water Cooling: 7800
BEST-355F(A)   Air Cooling Water Cooling 66, 61, 55, 46 0.7, 0.8, 1.0, 1.25 355/488 DN125 380/3/50 Y-△ Start 78 2 Air-Cooled Complete Machine Parts: 3300 (L) × 2000 (W) × 2315 (H) Air Cooling Machine Components: 2450 (L) × 1800 (W) × 2220 (H) Water Cooling: 3850 (L) × 2050 (W) × 2200 (H) Air Cooling: 8060 Water Cooling: 7930


Bristol Compressors (Shanghai) Co., Ltd. is a professional supplier and exporter of oil less screw air compressors. Our main products also include spray type compressors, oil free air screw compressors and oil screw rod and spray oil screw air compressors, refrigerated dryer, filter, drill carriage and diesel mobile air compression machine. Besides, we provide technical service, presale service, after sale service and various air compressors and parts and components. For detailed information about our oil less screw air compressor (oil screw air compressor), please visit our website and contact us directly.
