Oil Free Compressor,Oil Free Air Compressor,Oil Free Screw Air Compressor

Home»Products»Air Power Equipment»Bristol Air Compressor»Screw Air Compressor» Oil Free Screw Air Compressor

Product List

Oil Free Screw Air Compressor

BEST-08F(N)

BEST-11F(N)

BEST-15F(N)

BEST-18F(N)

BEST-22F(N)

BEST-30F(N)

BEST-37F(N)

BEST-45F(N)

BEST-55F(N)

BEST-75F(N)

BEST-90F(N)

BEST-110F(N)

BEST-132F(N)

BEST-160F(N)

BEST-200F(N)

BEST-250F(N)

Description
Oil free compressor adopts water instead of oil to finish lubricating, sealing and cooling during the whole rotary compression process. Such BESTCOPCO oil free air compressor adopts all stainless steel design. This oil free screw oil compressor is mainly used in textile, spraying, medical, chemical, food processing, electronic and light industry.

Structure Features
1. This oil free compressor adopts no lubricating oil structure. There is no oil engaging in the process of all systems. We take water as lubrication so that we provide very clean compressed air for clients. This oil free air compressor has a very low operation and maintenance cost (this oil free screw air compressor has no air compressor oil, no fine oil separator and oil cleaner).
2. This oil free compressor features ideal constant temperature compression. Our overall unit can only work less than 40 degree centigrade as the water cooling performance is high above oil compressor oil. 40 degree is close to suction temperature and this makes high efficiency and ideal air compression.
3. This oil free screw oil air compressor is environmentally friendly. There is no oil grease on the machine. All the parts and components employ corrosion rust-proof material, such as stainless steel and copper alloys, etc. High precision water cleaner can keep the water clean.
4. This oil free compressor is characterized by high efficiency. BEST-F (N) series oil free compressor makes use of pure water which functions sealing, cooling and lubricating. Compared with dry air compressor, per unit HP air production is improved by 20%.
(1) The cooling system is of high efficiency. It guarantees the maximum operating temperature (50 degree) of oil free compressor.
(2) Cooling cleaner is of best precision. It makes sure that the main engine can get pure lubricating water.
(3) The main engine is of high precision, guaranteeing its long service life.
(4) The electric machine is specially designed with high performance. (P54, F Class Insulation, SKF)

Service
1. Pre-Sale
We provide installation instructions of oil free compressor for clients. And bill of materials will be demonstrated after on-the-spot investigation so as to present the most cost-effective equipment quotation scheme.
2. In-Sale
Specialized after sale servicemen will be sent to present how to install the oil free air compressor. Besides, we will offer training programs for clients to check the quality and pipe installation of the oil free compressor.
3. After-Sale
The main engine of this oil free air compressor enjoys the quality guarantee for two years, and the overall unit has one year service promise.

Maintenance
Oil is replaced by water. No filter, oil content or lubricating oil needs changing, so as to reduce the upkeep cost of oil free screw air compressor.
Payment: T/T or L/C at sight
Mode of Transportation: By Motor in China; By Sea Abroad

Specification

Model	Cooling Method	Air Displacement (m3/min)	Working Pressure (MPa)	Motor Power (Kw)	Power Source (V/ph/Hz)	Starting Method	Noise [dB(A)]	Venting Oil Content (ppm)	Cooling Water Consumption (Inflow 32°) (T/h)	Air Transmission Interface Size	Dimension (L)×(W)×(H) (mm)	Net Weight (kg)
BEST-08F(N)	Air Cooling or Water Cooling	1.15	0.8	7.5	380/3/50	Y-△ Start	58	0	2.5	3/4”	1300 × 800 × 1300	500
		1.02	1.0

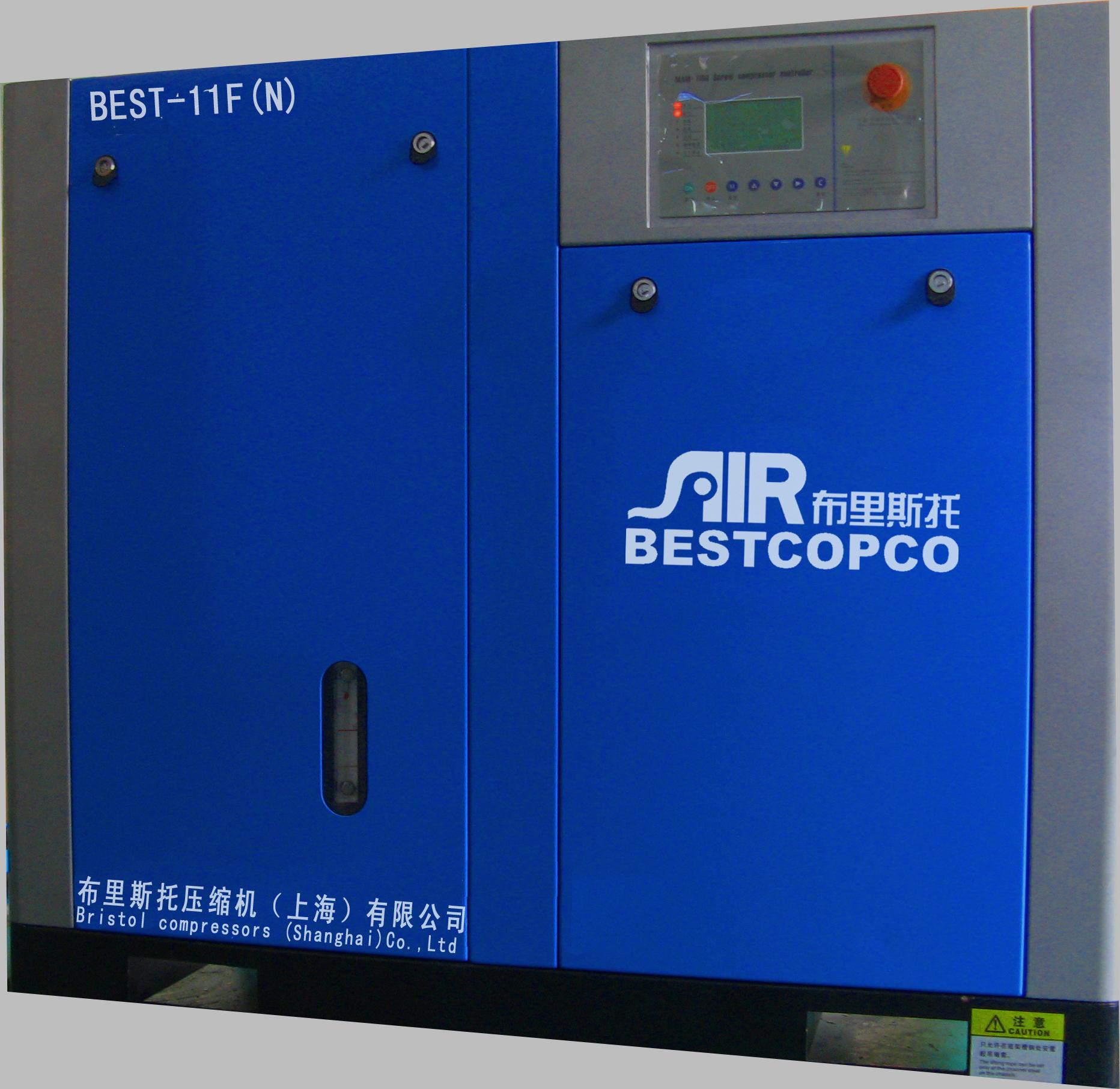

BEST- 11F(N)	Air Cooling or Water Cooling	1.55	0.8	11	380/3/50	Y-△ Start	58	0	3.5	3/4”	1300 × 800 × 1300	540
		1.32	1.0
		1.02	1.25

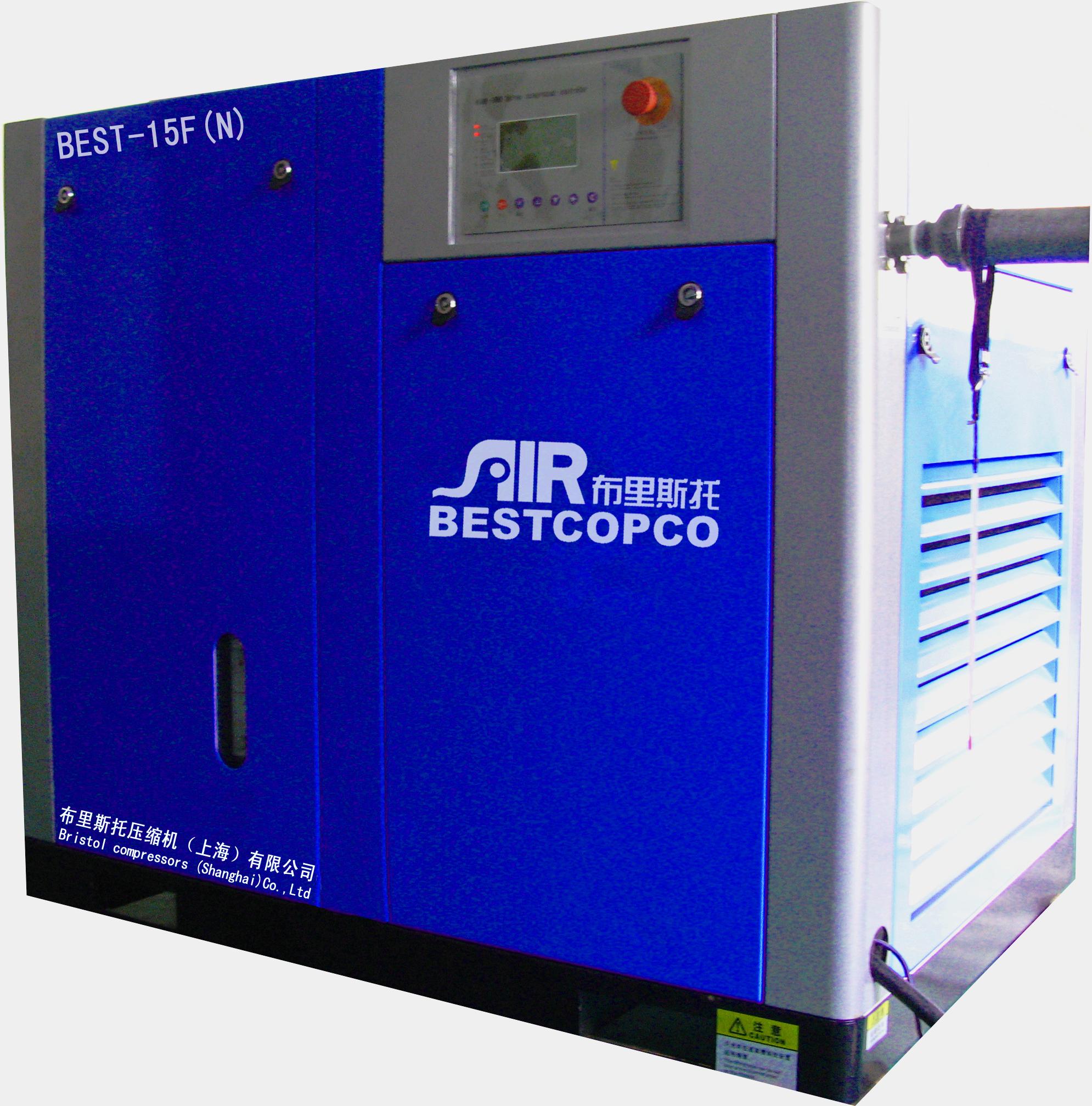

BEST- 15F(N)	Air Cooling or Water Cooling	2.40	0.8	15	380/3/50	Y-△ Start	63	0	5	1”	1600× 950 × 1400	650
		2.12	1.0
		1.61	1.25
BEST- 18 (N)	Air Cooling or Water Cooling	3.10	0.8	18.5	380/3/50	Y-△ Start	65	0	6	1”	1600 × 950 × 1400	840
		2.62	1.0
		2.13	1.25
BEST-22 F(N)	Air Cooling or Water Cooling	3.50	0.8	22	380/3/50	Y-△ Start	65	0	7	1”	1600×950 × 1400	870
		3.13	1.0
		2.61	1.25
BEST-30 F(N)	Air Cooling or Water Cooling	5.00	0.8	30	380/3/50	Y-△ Start	66	0	10	11/2”	1950 × 1050 × 1432	980
		4.20	1.0
		3.18	1.25
BEST-37 F(N)	Air Cooling or Water Cooling	6.10	0.8	37	380/3/50	Y-△ Start	67	0	12	11/2”	195× 1050 × 1432	1000
		5.22	1.0
		4.81	1.25
BEST-45 F(N)	Air Cooling or Water Cooling	7.30	0.8	45	380/3/50	Y-△ Start	68	0	15	2”	2150× 1300× 1570	1060
		6.13	1.0
		5.65	1.25
BEST-55 F(N)	Air Cooling or Water Cooling	9.60	0.8	55	380/3/50	Y-△ Start	70	0	18	2”	2150×1300 × 1570	1250
		8.60	1.0
		7.42	1.25
BEST-75 F(N)	Air Cooling or Water Cooling	12.50	0.8	75	380/3/50	Y-△ Start	73	0	24	2”	2150×1300 × 1570	1480
		11.42	1.0
		9.83	1.25

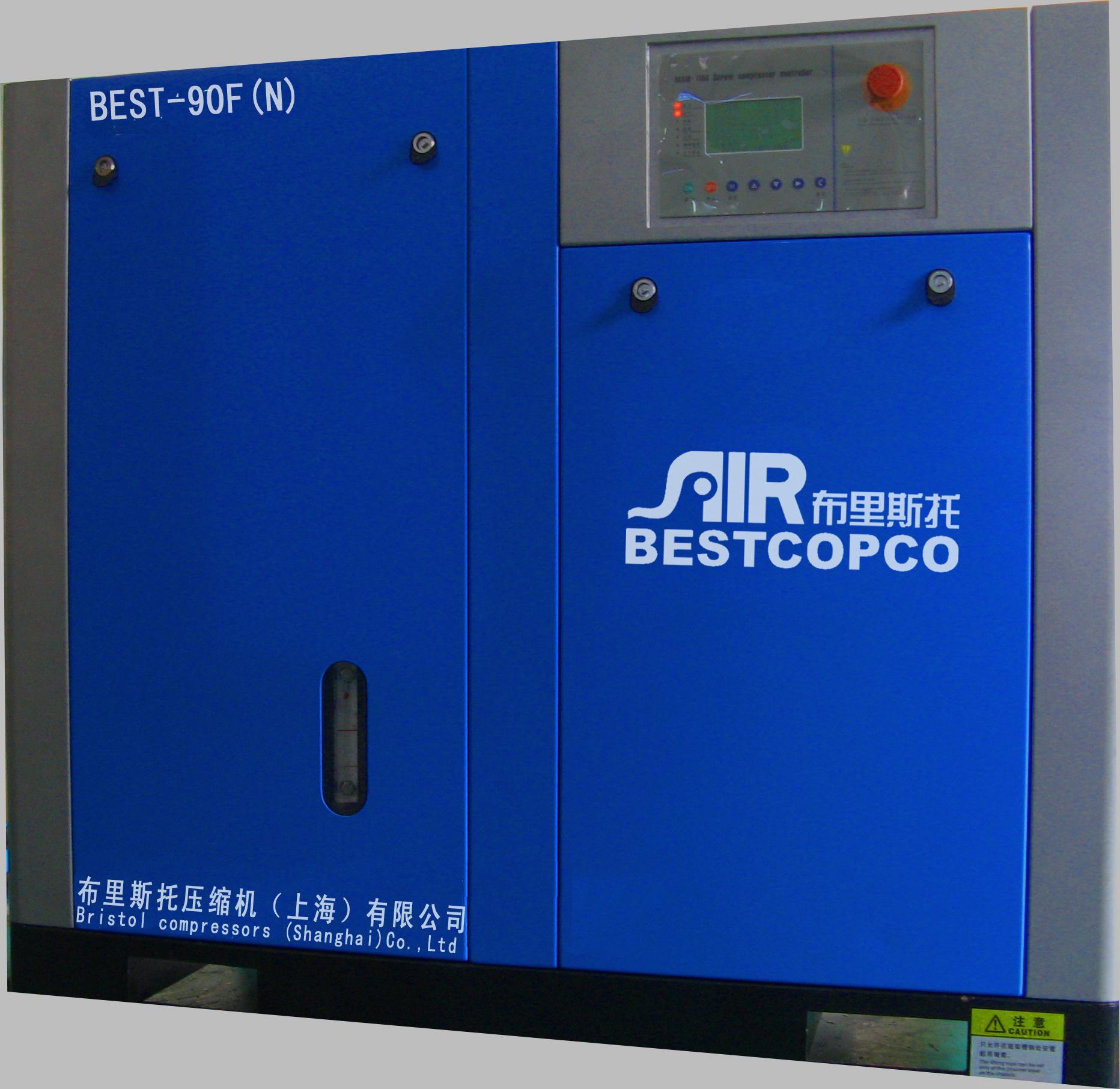

BEST-90 F(N)	Air Cooling or Water Cooling	16.30	0.8	90	380/3/50	Y-△ Start	73	0	30	2.5”	2500×1500 × 1700	2030
		14.52	1.0
		12.30	1.25
BEST-110 F(N)	Air Cooling or Water Cooling	19.40	0.8	110	380/3/50	Y-△ Start	78	0	36	2.5”	2500× 1500 × 1700	2450
		16.90	1.0
		15.10	1.25
BEST-132 F(N)	Air Cooling or Water Cooling	22.21	0.8	132	380/3/50	Y-△ Start	78	0	45	2 1/2”	2650× 1600 × 1800	2850
		20.38	1.0
		18.29	1.25
BEST-160 F(N)	Air Cooling or Water Cooling	28.85	0.8	160	380/3/50	Y-△ Start	78	0	53	3”	3300× 2200× 2000	3750
		24.52	1.0
		22.17	1.25

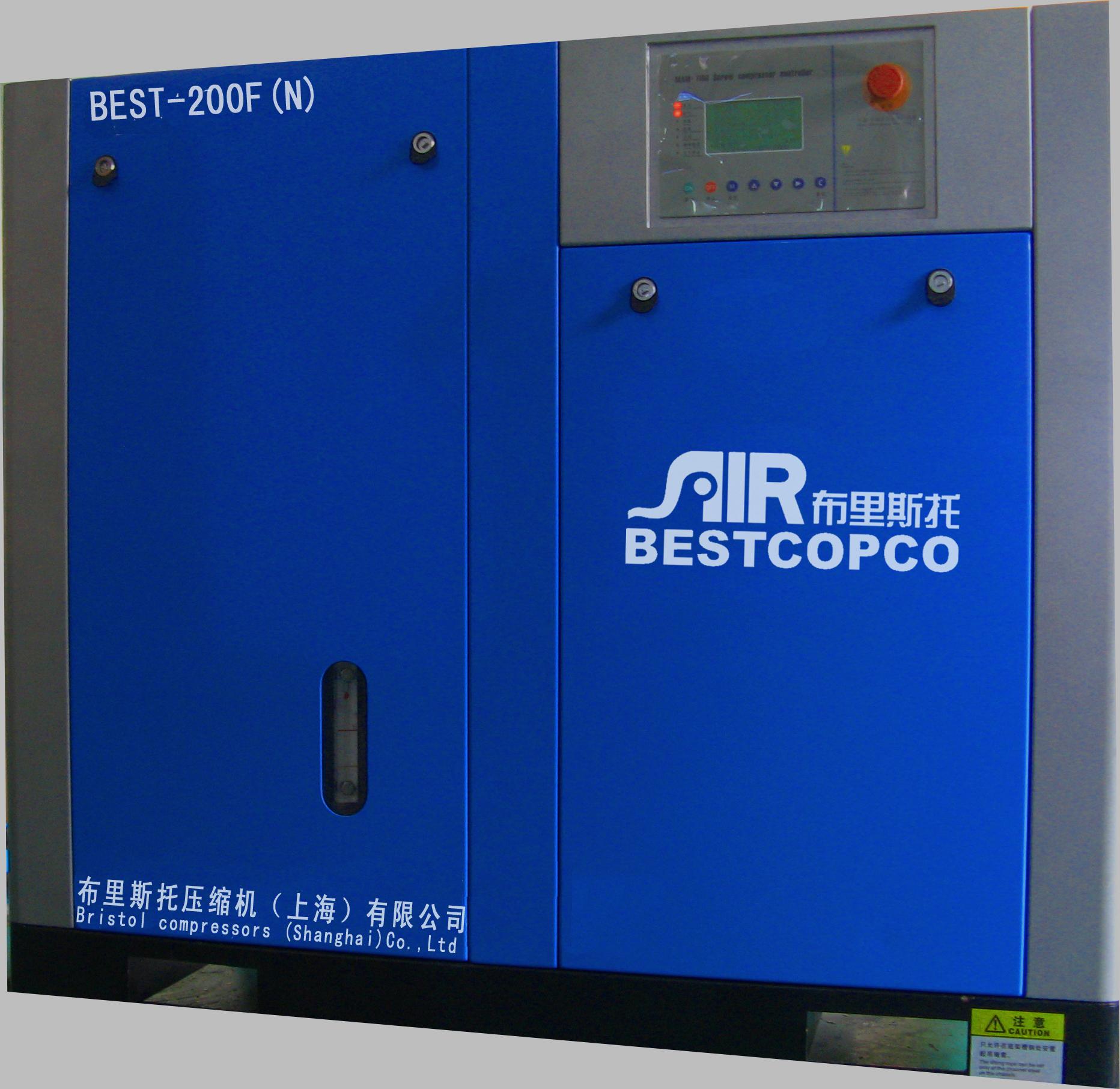

BEST-200 F(N)	Air Cooling or Water Cooling	36.63	0.8	200	380/3/50	Y-△ Start	78	0	65	4”	3300× 2200× 2000
		32.70	1.0
		27.72	1.25
BEST-250 F(N)	Air Cooling or Water Cooling	42.88	0.8	250	380/3/50	Y-△ Start	78	0	80	4”	3300× 2200 × 2000	4750
		39.00	1.0
		34.64	1.25

Bristol Compressors (Shanghai) Co., Ltd. is a professional supplier and enterprise of oil free compressors in China, engaged in manufacturing, marketing and maintaining oil free screw air compressors. Our main products include oil free air screw compressors and micro oil screw rod and spray oil screw compressors, refrigerated dryer, filter, drill carriage and diesel mobile air.
