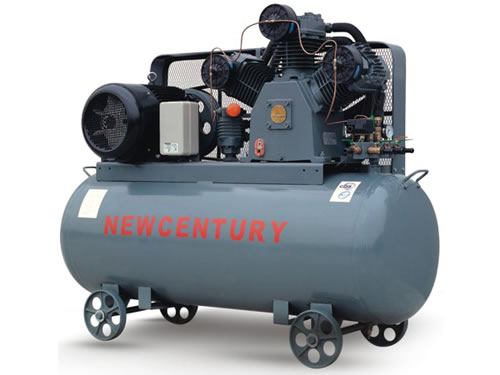

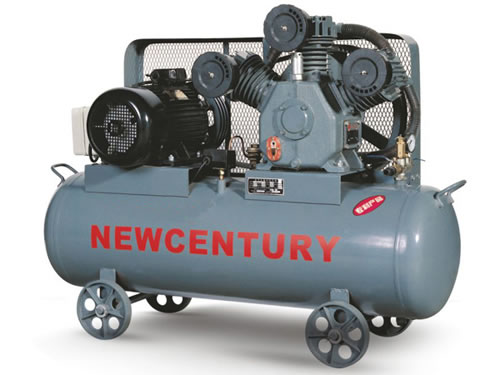

Single Tank Piston Air Compressor

Description
Single tank piston air compressor (single tank piston compressor) employs many patented technologies. With its own patents, aluminum alloy cylinder head and streamline cooling fan can reduce temperature quickly and decrease energy consumption. This single tank piston air compressor makes use of feather valve which features weak resistance, large air displacement and long working life (10 thousand hours). The efficient cyclone air intake filter, with its own patent technology, is capable of enhancing air intake ability of the cylinder and greatly increasing air displacement.

Features
1. Compact Structure, Smooth line and Beautiful Appearance
This single pot piston air compressor adopts fashionable design, reasonable structure of the controller parts and advanced paint spraying surface decoration technique
2. Patented Technology Accumulation, Efficient, Energy Saving, Long Lasting and Durable
This single tank piston air compressor adopts patented aluminum alloy cylinder head and streamline cooling fan, which can reduce temperature quickly and features energy consumption. Highly efficient reed valve from Sweden with small resistance and big airflow volume highly enhance air discharge volume. Single tank piston air compressor makes use of optimized design by computer and is characterized by small vibration, low noise, stable and reliable operation.
3. Strong Driving Force to Meet the Practical Demand of Clients
With complete series products, single tank piston air compressor can meet different demand of clients. Strong discharge pressure enhances working efficiency of pneumatic tools and makes wind supply of long distance possible. Single tank piston compressor is equipped with modularized load adjusting system with high flexibility, strong reliability and easy maintenance. In addition, this single pot piston air compressor can be operated under unattended condition for long time.

Payment: T/T or L/C at sight
Mode of Transportation: By Motor in China; By Sea Abroad

Types
There are three models for you to choose, as shown below:

Parameters

Type	W1.0/7	W1.8/7	W2.6/7	W3.2/7
Number of Cylinders × Cylinder Diameter (mm)	3 × 90	3 × 100	3 × 115	3 × 125
Revolution (rpm)	810	1100	970	980
Air Displacement (m3/min)	1	1.8	2.6	3.2
Blowing Rate (cfm)	35.3	63.60	92	113
Discharge Pressure (MPa)	0.7	0.7	0.7	0.7
Pressure (psig)	102	102	102	102
Air Tank Capacity (L)	174	312	322	490
Matched Power	Y132M (7.5Kw) 4-Pole Motor	Y-160M (11kW) 2-Pole Motor	Y160L (15kW) 4-Pole Motor	Y180M-4 (18.5kW) 4-Pole Motor
Net Weight (kg)	285	450	550	620
Gross Weight (kg)	360	495	620	690
Package Size (L × W × H ) (mm)	1650 × 650 × 1200	1810 × 635 × 1370	1870 × 690 × 1410	1920 × 740 × 1520

Bristol Compressors (Shanghai) Co., Ltd. is a professional manufacturer of single tank piston air compressors (single tank piston compressors) in China. We are engaged in various air compressors, like oil injected screw air compressor, micro oil screw type and oil free screw model and piston air compressors, etc. For more information about our products, please visit our website and contact us directly.
