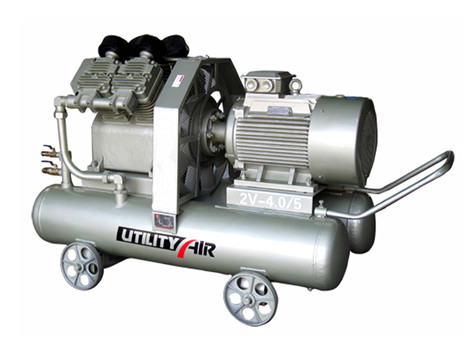

2V-4.0/5- BS-4.5/6
| Model | Air Tank Capacity (L) | Air Discharge Volume (m3/min) | Pressure (Mpa) |
Power (HP) |
Power (kW) |
Rotating Speed (rpm) | N.W (kg) | Overall Dimensions (cm) |
| 2V-4.0/5 | 220 | 4.0 | 0.5 | 30 | 22 | 970 | 600 | 1900 × 930 × 1235 |
| 2V-4.0/5C | 230 | 4.0 | 0.5 | 46 | 35 | 970 | 680 | 2120 × 895 × 1560 |
| Model | Air Tank Capacity (L) | Air Discharge Volume (m3/min) | Pressure (MPa) |
Power (HP) |
Power (kW) |
Rotating Speed (rpm) | N.W (kg) | Overall Dimensions (cm) |
| BS-4.5/6 | 200 | 4.5 | 0.6 | 33 | 25 | 970 | 550 | 1470 × 960 × 1180 |
| BS-4.5/6C | 210 | 4.5 | 0.6 | 46 | 35 | 970 | 630 | 2030×945×1560 |
