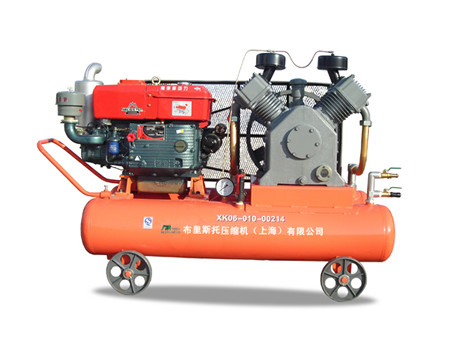

HV-4.0/5

No. Main Structural Data\Model 2V-3.5/5(Electric Driven/ Diesel Engine) BV-4.0/5(Electric Driven/ Diesel Engine)
1 Cylinder Diameter (mm) × Number 115 × 4 120 × 4
2 Stroke(mm) 100 100
3 Rated Pressure(MPa) 0.5 0.5
4 Rated Rotating Speed (r/min) 970 970
5 Air Discharge Volume ( m3/min) 3.5 4.0
6 Air Tank Capacity(L) 250 250
7 Piston Ring Structure Three Straight Incision Four Interface
8 Discharge Valve Plate Sweden Imported Thickened Stainless Steel Sweden Imported Thickened Stainless Steel
9 Cylinder Head Structure Integral Compressed Aluminum Alloy Integral Compressed Aluminum Alloy
10 Lubricating Method Splashing of Oil Needle Splashing of Oil Needle
11 Cooling Method Wind Cooling Wind Cooling
12 Equipped Motor& Drive Mode Y160L-2-2 pole 18.5 kW V-Belt Drive or Y200L1-6-6 Pole 18.5kW Flexible Pole DC Y160L-2- 2 Pole 18.5kW V-Belt Drive orY200L1-6-6 Pole 18.5kW Flexible Pole DC
13 Equipped Diesel Engine ZS1120, 18.5kW or ZS1125 20kW Single Cylinder Diesel Engine ZS1125 20kW or ZS1130 23kW Single Cylinder Diesel Engine
14 Diesel Engine Drive Mode Automatic Clutch +V-Belt Automatic Clutch+ V-Belt
