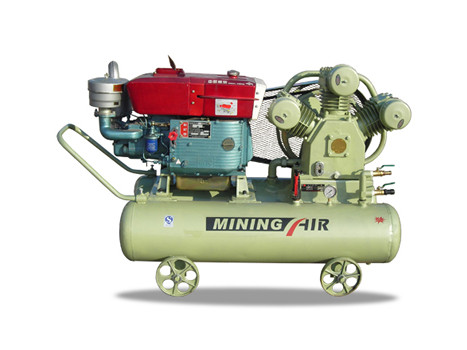

K-3118

No. Main Structural Data\Model K-3118 (Electric or Diesel Driven) K-3108 (Electric or Diesel Driven)
1 Cylinder Diameter (mm) ×  Number 118 × 3 108 × 3
2 Stroke(mm) 100 80
3 Rated Pressure (Mpa) 0.5/0.7 0.5/0.7
4 Rated Rotating Speed (r/min) 1080 1180
5 Air Discharge Volume ( m3/min) 3.0 2.0
6 Air Tank Capacity(L) 200 130
7 Piston Ring Structure Four Courses, Joint Interface Four Courses, Joint Interface
8 Discharge Valve Plate Sweden Imported Thickened Stainless Steel Sweden Imported Thickened Stainless Steel
9 Cylinder Head Structure Separated Compressed Aluminum Alloy Separated Compressed Aluminum Alloy
10 Lubricating Method Splashing of Oil Needle Splashing of Oil Needle
11 Cooling Method Wind Cooling Wind Cooling
12 Equipped Motor &  Drive Mode Y160M2-2 2 Pole 15kW or Y160L1-2 18.5kW motor, V-Belt Drive Y160M1-2 2pole 11kW or Y160M2-2 2 Pole 15KW Motor, V-belt Drive
13 Equipped Diesel Engine ZS1115 16.2KW or ZS1120 18.5KW,2200r/min
Single Cylinder Diesel Engine		 ZS1100 11kW or ZS1110 13.2KW,2200r/min Single Cylinder Diesel Engine
14 Diesel Engine Drive Mode Automatic Clutch +V-Belt Automatic Clutch +V-Belt
