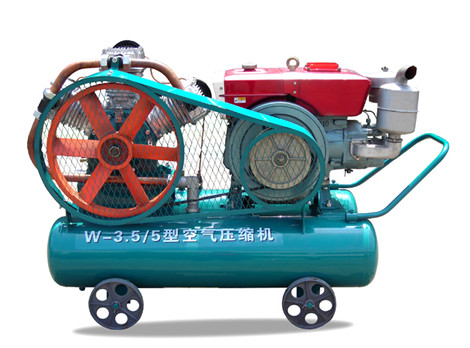

W-3.5/5
| No. | Main Structure Data \Model | W-3.5/5 (Electric Driven) | W-3.5/5 (Diesel Engine Drive) |
| 1 | Cylinder Diameter (mm) × Stroke (mm) × Cylinder Number | 125 × 100 × 3 | 125 × 100 × 3 |
| 2 | Rated Pressure(Mpa) | 0.5 | 0.5 |
| 3 | Rated Rotating Speed (r/min) | 1070 | 1070 |
| 4 | Air Discharge Volume ( m3/min) | 3.5 | 3.5 |
| 5 | Air Tank Capacity(L) | 200 | 200 |
| 6 | Lubrication Method/Cooling Method | Slashing of Oil Needle/Wind Cooling | Slashing of Oil Needle/Wind Cooling |
| 7 | Equipped Driving Force & Drive Mode | Y160L-2 2pole 18.5kW Motor Driven by V-belt | ZS1120 18KW or L28 20kWsingle Cylinder Diesel Engine Automatic Clutch +V-Belt Drive |
| 8 | Overall Dimensions(mm)/Weight(kg) | 1470 × 820 × 1165m/525kg | 1690 × 840 × 1150m/535kg |
