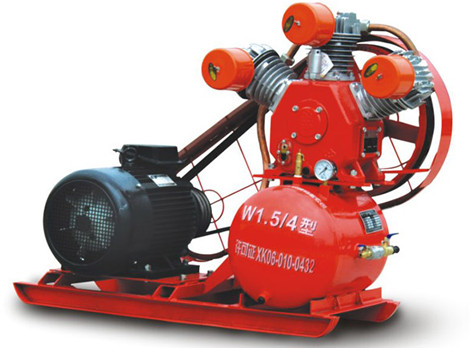

W1.5/4 Electric Drive
| Model | W1.5/4 Electric Driven | |
| Cylinder No. × Diameter | mm | 3 × 90 |
| Rotating Speed | rpm | 1180 |
| Air Discharge Volume | m3/min | 1.5 |
| cfm | 53 | |
| Air Discharge Pressure | MPa | 0.4 |
| psig | 58 | |
| Air Tank Capacity | L | 40 |
| Equipped Power | Y160M (11kW) 2 Pole Motor | |
| N.W | kg | 305 |
| G.W | kg | 340 |
| Package Size (L × W × H) | mm | 1500 × 620 × 1020 |
