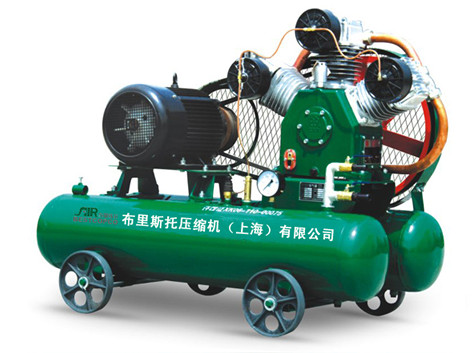

W3.0/5 Electric
| Model | W3.0/5 Electric | |
| Cylinder No. × Diameter | mm | 3 × 120 |
| Rotating Speed | rpm | 1070 |
| Air Discharge Volume | m3/min | 3 |
| cfm | 106 | |
| Air Discharge Pressure | Mpa | 0.5 |
| psig | 73 | |
| Air Tank Capacity | L | 200 |
| Equipped Power | Y160M2-2 (15kW) 2 Pole Motor | |
| N.W | kg | 530 |
| G.W | kg | 590 |
| Package Size (L × W × H) | mm | 1710 × 860 × 1245 |
